1718130009

Woodhead - Molex
In Stock: 4,479

Can ship immediately

Pricing:
  • 1$1.12
  • 10$0.989
  • 100$0.8532
  • 500$0.69804
  • 1,000$0.62048
  • 5,000$0.54292
  • 10,000$0.51577

Quote It

Technical Details

  • Series:KK396, 171813
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Positions:9
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Friction Lock
  • Contact Length - Mating:0.448" (11.38mm)



  • Contact Length - Post:0.093" (2.35mm)
  • Overall Contact Length:0.671" (17.05mm)
  • Insulation Height:0.446" (11.33mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:60.0µin (1.52µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-2
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


1-292161-5

CONN HEADER VERT 15POS 2MM

1-292161-5 Datasheet
  • 1: $1.12000
  • 10: $0.99213
  • 100: $0.86576

2-1969570-0

CONN HEADER VERT 20POS 2.5MM

2-1969570-0 Datasheet
  • 1: $1.13000
  • 10: $0.99005
  • 100: $0.85382

1734829-9

CONN HEADER R/A 9POS 1.25MM

1734829-9 Datasheet
  • 1: $1.13000
  • 47: $0.93435
  • 141: $0.85656

643265-7

CONN HEADER VERT 9POS 2.54MM

643265-7 Datasheet
  • 1: $1.13000
  • 10: $0.99832
  • 100: $0.87094

179846-1

CONN HEADER VERT 3POS 6.5MM

179846-1 Datasheet
  • 1: $1.13000
  • 10: $1.02400
  • 100: $0.87760

3020-26-0300-00-TR

CONN HEADER SMD 26POS 2.54MM

  • 1: $1.62000

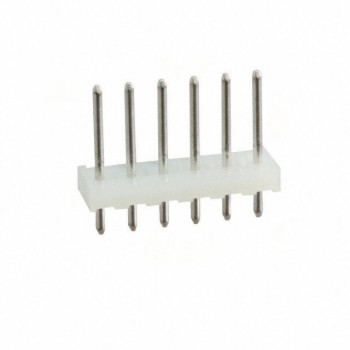

0026202061

CONN HEADER VERT 6POS 3.96MM

0026202061 Datasheet
  • 1: $1.14000
  • 10: $0.99900
  • 100: $0.86170

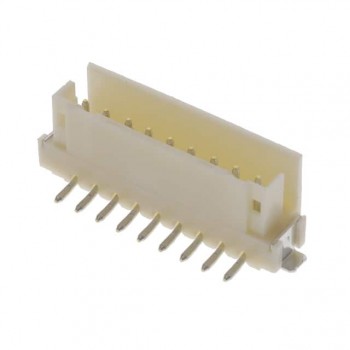

292175-9

CONN HEADER SMD 9POS 2MM

292175-9 Datasheet
  • 1: $1.72000
  • 700: $1.23264
  • 1400: $1.07460

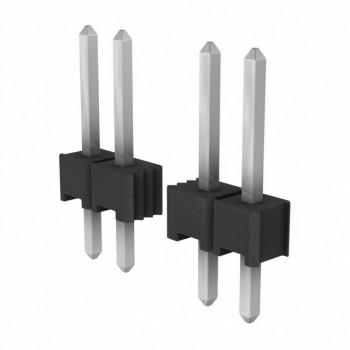

5-146278-8

CONN HEADER VERT 8POS 2.54MM

5-146278-8 Datasheet
  • 1: $1.15000
  • 10: $1.01234
  • 100: $0.87308

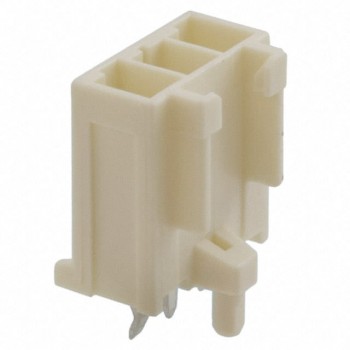

179839-1
