0901201086

Woodhead - Molex
In Stock: 2,864

Can ship immediately

Pricing:
  • 1$1.23
  • 10$1.08079
  • 100$0.93198
  • 500$0.76256
  • 2,400$0.61428
  • 7,200$0.5931
  • 12,000$0.55074

Quote It

Technical Details

  • Series:C-Grid III 90120
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:6
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.266" (6.75mm)



  • Contact Length - Post:0.114" (2.90mm)
  • Overall Contact Length:0.478" (12.15mm)
  • Insulation Height:0.098" (2.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:2.00µin (0.051µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


2-292141-4

CONN HEADER VERT 24POS 2MM

2-292141-4 Datasheet
  • 1: $1.23000
  • 10: $1.09617
  • 150: $0.95638

1-292132-5

CONN HEADER VERT 15POS 2MM

1-292132-5 Datasheet
  • 1: $1.23000
  • 10: $1.09344
  • 100: $0.95417

0466220201

CONN HEADER SMD R/A 2POS 3MM

0466220201 Datasheet
  • 1: $1.75000
  • 230: $1.36457
  • 460: $1.23463

173081-4

CONN HEADER VERT 4POS 2.5MM

173081-4 Datasheet
  • 1: $1.24000
  • 10: $1.08863
  • 100: $0.93889

292175-7

CONN HEADER SMD 7POS 2MM

292175-7 Datasheet
  • 1: $2.16000
  • 700: $1.33533
  • 1400: $1.16413

1-1734829-0

CONN HEADER R/A 10POS 1.25MM

1-1734829-0 Datasheet
  • 1: $1.25000
  • 43: $1.04877
  • 129: $0.96801

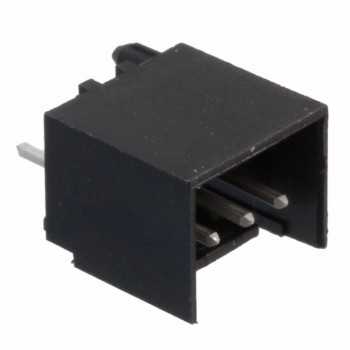

3-644893-3

CONN HEADER VERT 3POS 2.54MM

3-644893-3 Datasheet
  • 1: $1.25000
  • 10: $1.09500
  • 100: $0.94490

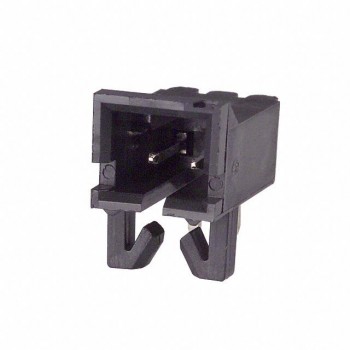

103672-1

CONN HEADER R/A 2POS 2.54MM

103672-1 Datasheet
  • 1: $1.25000
  • 70: $0.99055
  • 140: $0.94748

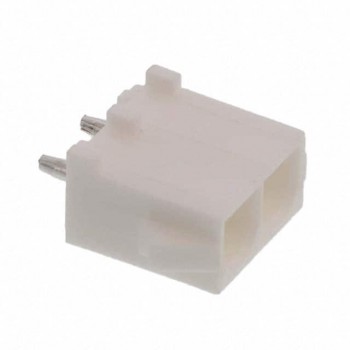

794876-1
