In Stock: 4,133

Can ship immediately

Pricing:
  • 1$1.29
  • 10$1.14155
  • 25$1.07664
  • 50$1.03323
  • 100$0.98972
  • 250$0.90292
  • 500$0.8161
  • 1,000$0.72928
  • 2,500$0.66417

Quote It

Technical Details

  • Series:Power Key
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Tab
  • Pitch - Mating:0.197" (5.00mm)
  • Number of Positions:4
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.138" (3.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.555" (14.10mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
  • Features:Board Guide
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Red
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:300VAC

Related Products


2011970300

CONN HEADER SMD 30POS 2MM

  • 1: $1.84000
  • 380: $1.08584
  • 760: $0.97155

1-292253-3

CONN HEADER R/A 13POS 2MM

1-292253-3 Datasheet
  • 1: $1.30000
  • 10: $1.13905
  • 100: $0.98233

1-641938-1

CONN HEADER VERT 8POS 3.96MM

1-641938-1 Datasheet
  • 1: $1.30000
  • 10: $1.15597
  • 100: $1.00876

825433-9

CONN HEADER VERT 9POS 2.54MM

825433-9 Datasheet
  • 1: $1.31000
  • 10: $1.15631
  • 100: $0.99756

2-292141-2

CONN HEADER VERT 22POS 2MM

2-292141-2 Datasheet
  • 1: $1.33000
  • 10: $1.17745
  • 160: $1.02751

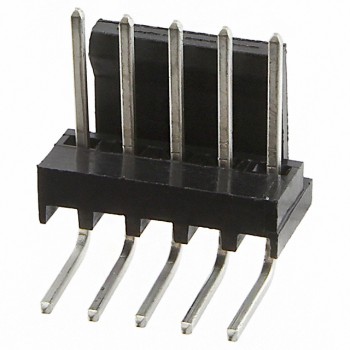

3-647630-5

CONN HEADER R/A 5POS 2.54MM

3-647630-5 Datasheet
  • 1: $1.32000
  • 10: $1.16453
  • 100: $1.01591

0417920513

CONN HEADER R/A 4POS 3.96MM

0417920513 Datasheet
  • 1: $1.32000
  • 10: $1.15700
  • 100: $0.99840

103634-4

CONN HEADER R/A 5POS 2.54MM

103634-4 Datasheet
  • 1: $1.32000
  • 35: $1.09341
  • 105: $1.00237

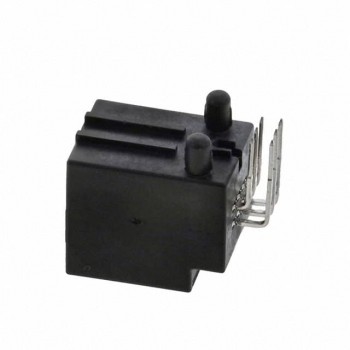

0307005061

CONN HEADER R/A 6POS 2.54MM

0307005061 Datasheet
  • 1: $1.33000
  • 10: $1.16879
  • 100: $1.00818

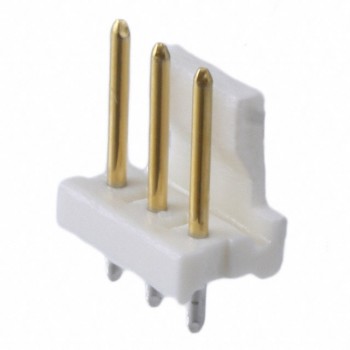

3-641209-3
