328-10-102-40-020001

Mill-Max
In Stock: 2,968

Can ship immediately

Pricing:
  • 1$2.41
  • 1,450$0.9345
  • 2,900$0.8722
  • 7,250$0.82859
  • 10,150$0.8099

Quote It

Technical Details

  • Series:328
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:2
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:-
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.125" (3.18mm)



  • Contact Length - Post:-
  • Overall Contact Length:0.330" (8.38mm)
  • Insulation Height:0.083" (2.10mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Brass Alloy
  • Insulation Material:Polyamide (PA46), Nylon 4/6
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products

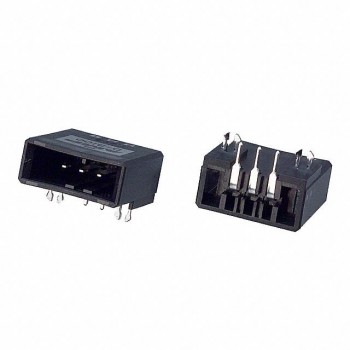

1-178293-5

CONN HEADER R/A 3POS 3.81MM

1-178293-5 Datasheet
  • 1: $1.40000
  • 23: $1.22762
  • 115: $1.05913

0015911102

CONN HEADER SMD 10POS 2.54MM

0015911102 Datasheet
  • 1: $1.40000
  • 10: $1.27000
  • 100: $1.08890

90309-110LF

CONN HEADER VERT 10POS 2MM

90309-110LF Datasheet
  • 1: $1.40000
  • 10: $1.23504
  • 100: $1.06584

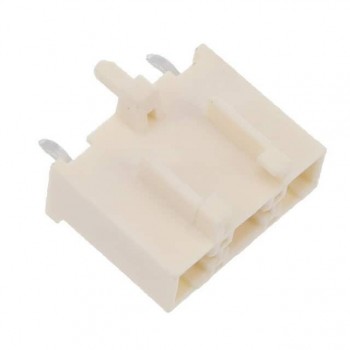

917745-1

CONN HEADER VERT 3POS 6.5MM

917745-1 Datasheet
  • 1: $1.40000
  • 10: $1.27300
  • 100: $1.09110

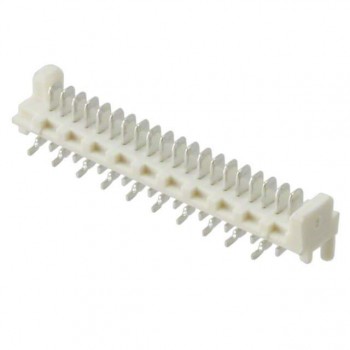

0908140820

CONN HEADER SMD 20POS 1.27MM

0908140820 Datasheet
  • 1: $1.40000
  • 18: $1.26778
  • 108: $1.08657

78208-107HLF

CONN HEADER R/A 7POS 2.54MM

78208-107HLF Datasheet
  • 1: $1.40000
  • 10: $1.24275
  • 100: $1.08429

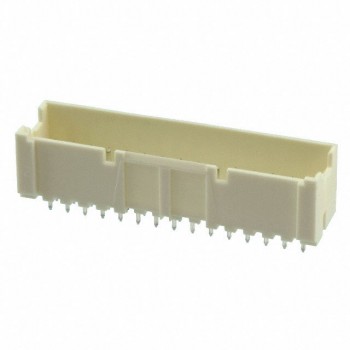

3-1969570-0

CONN HEADER VERT 30POS 2.5MM

3-1969570-0 Datasheet
  • 1: $1.40000
  • 10: $1.22993
  • 100: $1.06068

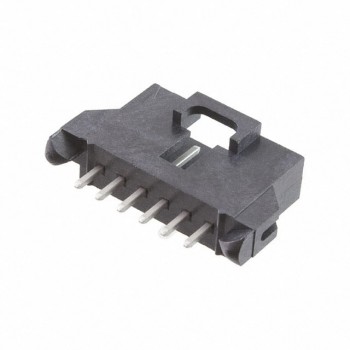

1719720006

CONN HEADER VERT 6POS 2.54MM

1719720006 Datasheet
  • 1: $1.40000
  • 23: $1.23348
  • 115: $1.06435

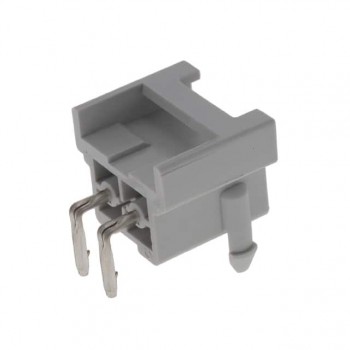

1-1969694-2

CONN HEADER R/A 2POS 6MM

1-1969694-2 Datasheet
  • 1: $1.42000
  • 10: $1.25039
  • 112: $1.07874

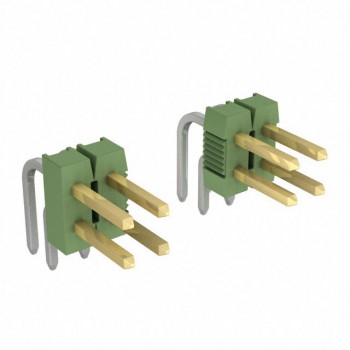

826634-5
