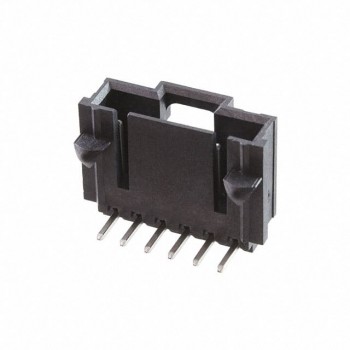

0466220600
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD R/A 6POS 3MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 0466220600 Datasheet
-
ECAD Model
- Share
In Stock: 1,711
Can ship immediately
Pricing:
- 1$2.1
- 230$1.63191
- 460$1.4765
- 690$1.35993
- 1,150$1.16565
- 1,610$1.1268
- 5,750$1.03354
Quote It
Technical Details
- Series:Micro-Fit 3.0 BMI 46622
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.118" (3.00mm)
- Number of Positions:6
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:-
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.350" (8.89mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:60.0µin (1.52µm)
- Contact Finish - Post:Tin
- Contact Material:Brass Alloy
- Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
- Features:Board Guide
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
