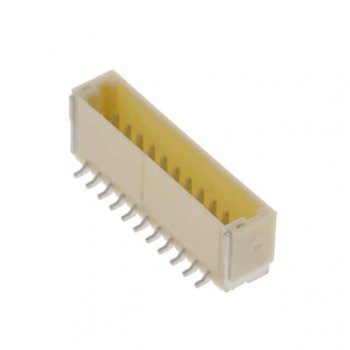

1-1734595-0
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 10POS 1MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 1-1734595-0 Datasheet
-
ECAD Model
- Share
In Stock: 5,802
Can ship immediately
Pricing:
- 1$2.9
- 1,000$1.4994
- 2,000$1.44942
- 3,000$1.39944
- 5,000$1.32947
Quote It
Technical Details
- Series:High Performance Interconnect (HPI)
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.039" (1.00mm)
- Number of Positions:10
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:-
- Contact Length - Mating:-
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.169" (4.30mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:120.0µin (3.05µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Polyamide (PA9T), Nylon 9T
- Features:Pick and Place, Solder Retention
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Ivory
- Current Rating (Amps):1A
- Voltage Rating:50V
Related Products

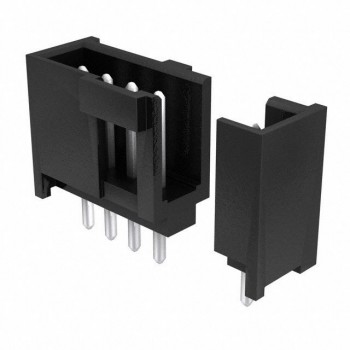

CONN HEADER VERT 7POS 2.54MM
