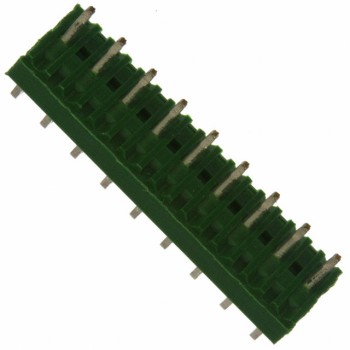

1-5164713-1
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 11POS 2.5MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 1-5164713-1 Datasheet
-
ECAD Model
- Share
In Stock: 6,111
Can ship immediately
Pricing:
- 1$1.67
- 10$1.5196
- 100$1.3027
- 500$1.08556
- 1,000$0.93048
- 5,000$0.82502
- 10,000$0.80641
Quote It
Technical Details
- Series:Mini-Match
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Tab
- Pitch - Mating:0.098" (2.50mm)
- Number of Positions:11
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:-
- Contact Length - Mating:-
- Contact Length - Post:0.126" (3.20mm)
- Overall Contact Length:0.358" (9.09mm)
- Insulation Height:0.118" (3.00mm)
- Contact Shape:Rectangular
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
- Features:-
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Green
- Current Rating (Amps):-
- Voltage Rating:-
