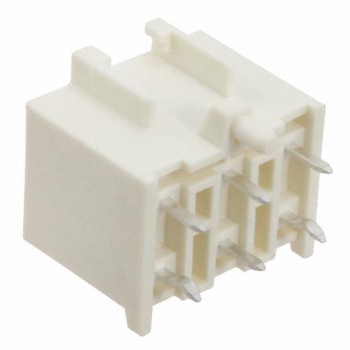

1586174-1
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 6POS 6.35MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 1586174-1 Datasheet
-
ECAD Model
- Share
In Stock: 1,229
Can ship immediately
Pricing:
- 1$1.84
- 10$1.67387
- 100$1.43457
- 500$1.19545
- 1,000$1.02467
- 5,000$0.90854
- 10,000$0.88805
Quote It
Technical Details
- Series:Universal MATE-N-LOK
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.250" (6.35mm)
- Number of Positions:6
- Number of Rows:2
- Row Spacing - Mating:0.250" (6.35mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.155" (3.94mm)
- Overall Contact Length:-
- Insulation Height:0.550" (13.97mm)
- Contact Shape:Circular
- Contact Finish - Mating:-
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:-
- Contact Material:Phosphor Bronze
- Insulation Material:Polyamide (PA), Nylon
- Features:Board Guide
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:White
- Current Rating (Amps):12A
- Voltage Rating:600VAC
