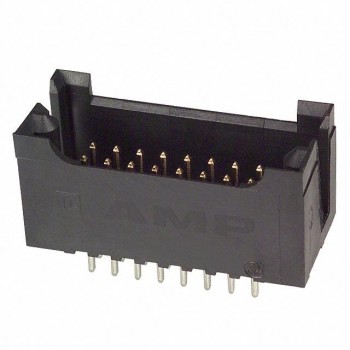

6-104909-9
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 20POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 6-104909-9 Datasheet
-
ECAD Model
- Share
In Stock: 625
Can ship immediately
Pricing:
- 1$3.86
- 10$3.71007
- 100$3.09193
- 500$2.62812
- 1,000$2.24162
- 5,000$2.00973
Quote It
Technical Details
- Series:AMPMODU MTE
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:20
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Press-Fit, Solder
- Fastening Type:Latch Holder
- Contact Length - Mating:0.230" (5.84mm)
- Contact Length - Post:0.130" (3.30mm)
- Overall Contact Length:0.545" (13.84mm)
- Insulation Height:0.535" (13.60mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:15.0µin (0.38µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Thermoplastic
- Features:Keying Slot
- Operating Temperature:-65°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:-
