In Stock: 5,417

Can ship immediately

Pricing:
  • 1$1.83

Quote It

Technical Details

  • Series:AMPMODU
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:12
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.157" (4.00mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:-
  • Insulation Height:0.059" (1.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Pick and Place
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A
  • Voltage Rating:125VAC/DC

Related Products


1511173020

CONN HEADER VERT 20POS 2MM

  • 1: $1.83000

0537802070

CONN HEADER SMD R/A 20POS 1.25MM

0537802070 Datasheet
  • 1: $3.27000
  • 1500: $1.83008
  • 3000: $1.76472

0015916102

CONN HEADER SMD 10POS 2.54MM

0015916102 Datasheet
  • 1: $2.43000
  • 330: $1.86200
  • 660: $1.71500

2842139-8

16P,2MM,BRK HDR,DRVT,2.8,0.38AU,

  • 1: $1.87000

1510133218

CONN HEADER VERT 18POS 2MM

  • 1: $1.87000

2086591440

IGRID PLUG TH HDR RA GF 14CKT

  • 1: $1.89000

2842151-6

12P,2MM,BRK HDR,DRRT,2.8,0.38AU,

  • 1: $1.88000

2842112-8

8P,2MM,BRK HDR,SRRT,2.8,0.76AU,T

  • 1: $1.88000

2842144-6

12P,2MM,BRK HDR,DRVT,SMD,0.76AU,

  • 1: $2.06000

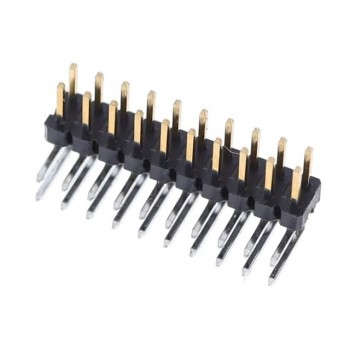

1-2842162-0
