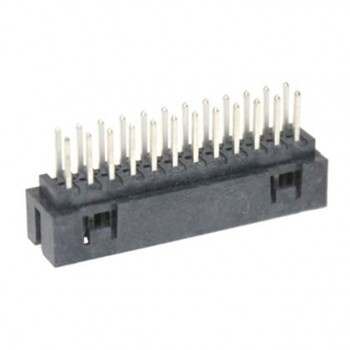

2086591440
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIGRID PLUG TH HDR RA GF 14CKT
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 17,802,160
Can ship immediately
Pricing:
- 1$1.89
Quote It
Technical Details
- Series:iGrid 208659
- Package:Tray
- Part Status:Active
- Connector Type:Plug
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:14
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Latch Lock
- Contact Length - Mating:-
- Contact Length - Post:0.126" (3.20mm)
- Overall Contact Length:-
- Insulation Height:0.327" (8.30mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:3.94µin (0.100µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon, Glass Filled
- Features:-
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Beige
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:250VAC/DC
