In Stock: 1,533

Can ship immediately

Pricing:
  • 1$2.42
  • 10$2.19522

Quote It

Technical Details

  • Series:AMPMODU Mod I
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Positions:6
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.394" (10.00mm)



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:0.642" (16.30mm)
  • Insulation Height:0.913" (23.20mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polycarbonate, Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Green
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


2-2825260-4

24P VRT HDR VAL-U-LOK HCS V0

  • 1: $2.45000

DF14-25P-1.25H(54)

CONN HEADER SMD R/A 25POS 1.25MM

DF14-25P-1.25H(54) Datasheet
  • 1: $2.43000
  • 10: $2.20073
  • 100: $1.88589

2-2825261-4

24P VAL-U-LOK HCS VRT HDR W/P V0

  • 1: $2.45000

1726750614

CONN HEADER VERT 6POS 4.2MM

1726750614 Datasheet
  • 1: $2.48000
  • 3840: $1.28535

1724470214

CONN HEADER VERT 14POS 4.2MM

1724470214 Datasheet
  • 1: $2.48000
  • 2400: $1.28549

294645

MAXIBR M 02POS VERT P SMT BK

  • 1: $3.52000

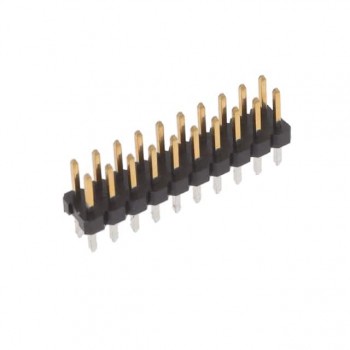

1-2842131-0

20P,2MM,BRK HDR,DRVT,2.8,0.38AU,

  • 1: $2.48000

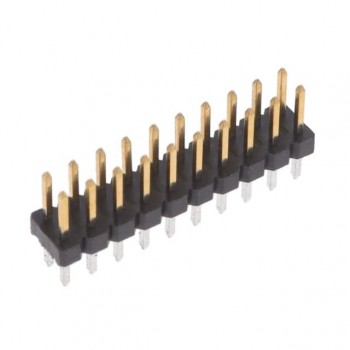

1-2842128-0

20P,2MM,BRK HDR,DRVT,2.8,0.76AU,

  • 1: $2.48000

0460151002

CONN HEADER VERT 10POS 4.2MM

0460151002 Datasheet
  • 1: $2.52000
  • 3360: $1.30578

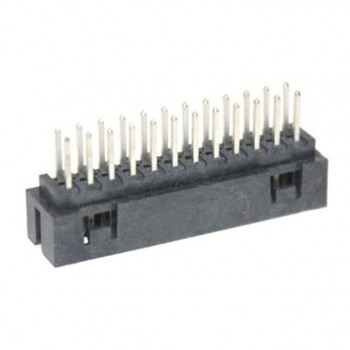

1511173038
