HIF3H-20PB-2.54DSA(61)
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 20POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 632
Can ship immediately
Pricing:
- 1$3.33
Quote It
Technical Details
- Series:HIF3H
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:20
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.276" (7.00mm)
- Contact Length - Post:0.138" (3.50mm)
- Overall Contact Length:0.591" (15.00mm)
- Insulation Height:0.177" (4.50mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:8.00µin (0.203µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polybutylene Terephthalate (PBT)
- Features:-
- Operating Temperature:-55°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:300VAC
Related Products

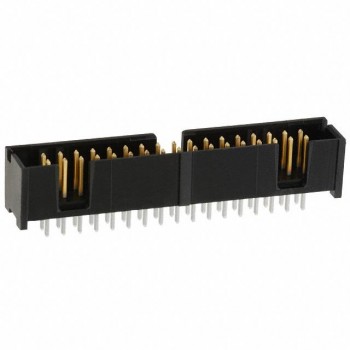

CONN HEADER R/A 14POS 2.54MM
- 1: $3.33000

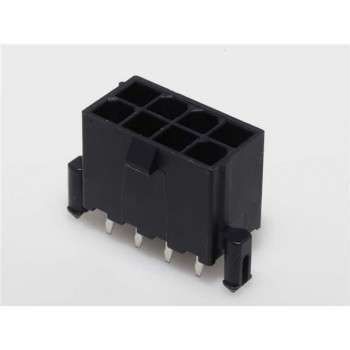

MAXIBR M 08POS RA A SMT BK
- 1: $4.72000

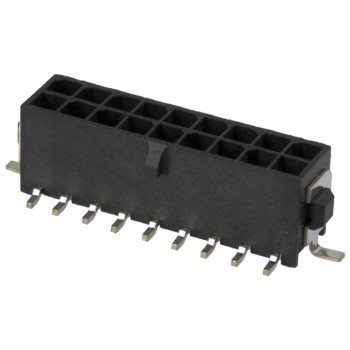

PLUG, STRAIGHT, SMT PINS
