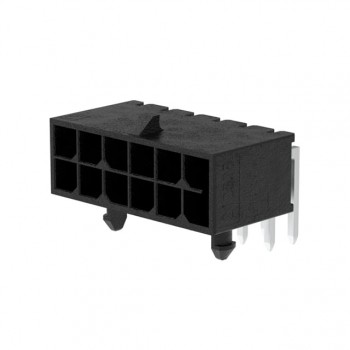

0039299125
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 12POS 4.2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 0039299125 Datasheet
-
ECAD Model
- Share
In Stock: 2,576
Can ship immediately
Pricing:
- 1$4.61
- 2,400$2.48681
Quote It
Technical Details
- Series:Mini-Fit Jr 5566
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.165" (4.20mm)
- Number of Positions:12
- Number of Rows:2
- Row Spacing - Mating:0.165" (4.20mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.138" (3.50mm)
- Overall Contact Length:-
- Insulation Height:0.504" (12.80mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyamide (PA66), Nylon 6/6
- Features:Board Lock
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-2
- Insulation Color:Natural
- Current Rating (Amps):-
- Voltage Rating:-
