2125281601

Woodhead - Molex
In Stock: 469

Can ship immediately

Pricing:
  • 1$6.89

Quote It

Technical Details

  • Series:Micro-Fit+ 212528
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.118" (3.00mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.118" (3.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.125" (3.18mm)
  • Overall Contact Length:-
  • Insulation Height:0.291" (7.40mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:Board Lock
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:600VAC/DC

Related Products


HIF3BB-60PA-2.54DSA(63)

CONN HEADER VERT 60POS 2.54MM

  • 1: $6.88000

244858

SMC M VERT Q 80POS SMT 3.25MM

  • 1: $9.71000

N3372-5002RB

CONN HEADER R/A 60POS 2.54MM

N3372-5002RB Datasheet
  • 1: $6.97000
  • 10: $6.67879
  • 100: $5.51690

10146997-08000LF

MINITEKPWR 5.70MM RIGHT ANGLE TH

  • 1: $7.06000

0015286142

CONN HEADER VERT 14POS 4.2MM

0015286142 Datasheet
  • 1: $7.14000
  • 1280: $4.16410

064004

SMC M VERT Q 50POS PFIT 3.25MM

  • 1: $7.13000

53611-S40-6LF

CONN HEADER VERT 40POS 2.54MM

53611-S40-6LF Datasheet
  • 1: $7.29000
  • 360: $5.33531

69273-104LF

CONN HEADER R/A 4POS 2.54MM

69273-104LF Datasheet
  • 1: $7.32000
  • 648: $5.07503

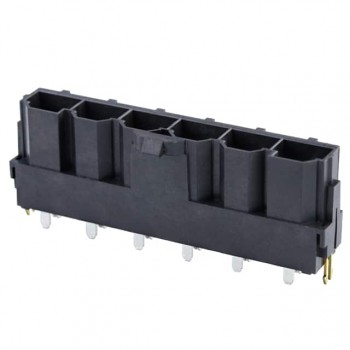

0428196214
