In Stock: 138

Can ship immediately

Pricing:
  • 1$0.46
  • 10$0.43177
  • 100$0.3311
  • 500$0.2879
  • 1,000$0.23752
  • 5,000$0.20873
  • 10,000$0.19433

Quote It

Technical Details

  • Series:Universal Power
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Tab
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Positions:3
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:2
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.150" (3.81mm)
  • Overall Contact Length:-
  • Insulation Height:0.551" (14.00mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
  • Features:-
  • Operating Temperature:-30°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Blue
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:-

Related Products


1744057-7

CONN HEADER VERT 7POS 3.96MM

1744057-7 Datasheet
  • 1: $0.46000
  • 10: $0.42574
  • 100: $0.33267

1744427-3

CONN HEADER VERT 3POS 3.96MM

1744427-3 Datasheet
  • 1: $0.46000
  • 10: $0.42868
  • 25: $0.38914

1-1470109-6

CONN HEADER VERT 16POS 2MM

1-1470109-6 Datasheet
  • 1: $0.46000
  • 10: $0.43125
  • 100: $0.33676

1744489-6

CONN HEADER VERT 6POS 3.96MM

1744489-6 Datasheet
  • 1: $0.46000
  • 10: $0.42868
  • 100: $0.33521

1-176975-9

CONN HEADER VERT 2POS 3.96MM

1-176975-9 Datasheet
  • 1: $0.46000
  • 10: $0.44200
  • 100: $0.31670

DF3A-13P-2DS

CONN HEADER R/A 13POS 2MM

DF3A-13P-2DS Datasheet
  • 1: $0.46000
  • 10: $0.42933
  • 100: $0.32916

1871843-4

CONN HEADER VERT 4POS 2.5MM

1871843-4 Datasheet
  • 1: $0.46000
  • 10: $0.40722
  • 100: $0.35522

7-1971798-1

CONN HEADER VERT 7POS 2.5MM

7-1971798-1 Datasheet
  • 1: $0.46000
  • 10: $0.43508
  • 100: $0.33983

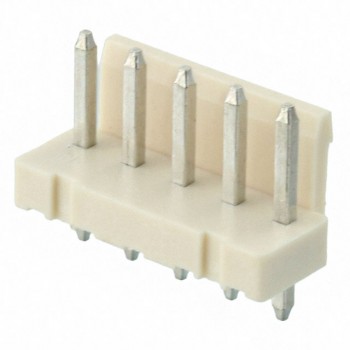

1744489-5

CONN HEADER VERT 5POS 3.96MM

1744489-5 Datasheet
  • 1: $0.47000
  • 10: $0.45365
  • 100: $0.32512

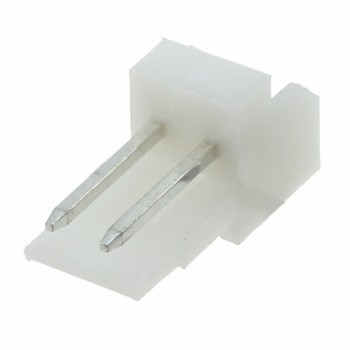

171826-2
