AT04-12PA-BM02

Tuchel / Amphenol
In Stock: 239

Can ship immediately

Pricing:
  • 1$9.02
  • 10$8.65397
  • 25$7.924
  • 50$7.55885
  • 100$7.37618
  • 250$6.6459
  • 500$6.28071
  • 1,000$5.62343

Quote It

Technical Details

  • Series:BoardLock™ AT
  • Package:Tray
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Male Pin
  • Pitch - Mating:-
  • Number of Positions:12
  • Number of Rows:2
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.835" (21.21mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:-
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Board Lock, Potting Wall
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:IP67
  • Material Flammability Rating:-
  • Insulation Color:Gray
  • Current Rating (Amps):13A
  • Voltage Rating:-

Related Products


SMH150-LPSE-D25-ST-BK

CONN HEADER VERT 50POS 1MM

SMH150-LPSE-D25-ST-BK Datasheet
  • 1: $9.22000
  • 10: $8.81700
  • 100: $7.41420

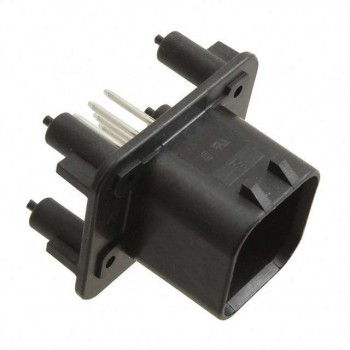

1-776275-1

CONN HEADER VERT 8POS 4MM

1-776275-1 Datasheet
  • 1: $9.52000
  • 10: $9.12865
  • 100: $7.60721

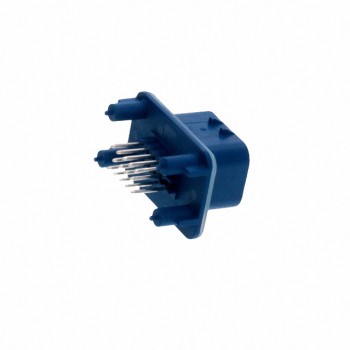

776262-5

CONN HEADER VERT 14POS 4MM

776262-5 Datasheet
  • 1: $9.91000
  • 10: $9.50262
  • 100: $7.84999

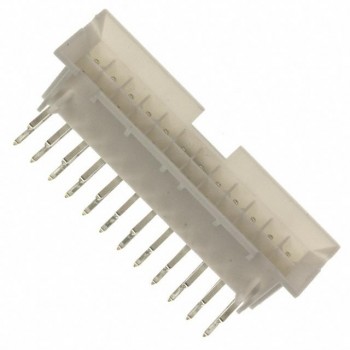

0015246243

CONN HEADER R/A 24POS 4.2MM

0015246243 Datasheet
  • 1: $10.03000
  • 10: $9.59769
  • 200: $8.07097

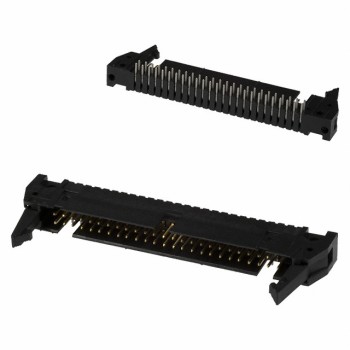

1-5499786-0

CONN HEADER R/A 50POS 2.54MM

1-5499786-0 Datasheet
  • 1: $10.23000
  • 10: $9.82266
  • 100: $8.39036

G125-MV12605M2P

CONN HEADER VERT 26POS 1.25MM

G125-MV12605M2P Datasheet
  • 1: $10.73000
  • 10: $10.26621
  • 100: $8.63336

800-10-064-20-001000

CONN HEADER R/A 64POS 2.54MM

800-10-064-20-001000 Datasheet
  • 1: $10.99000
  • 10: $10.51146
  • 100: $8.83897

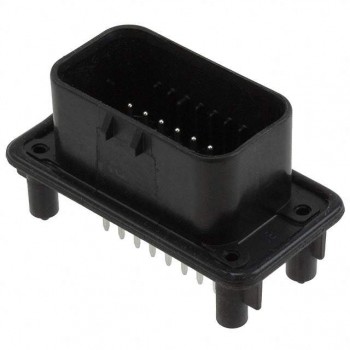

776200-1

CONN HEADER VERT 23POS 4MM

776200-1 Datasheet
  • 1: $11.10000
  • 10: $10.64320
  • 100: $8.79221

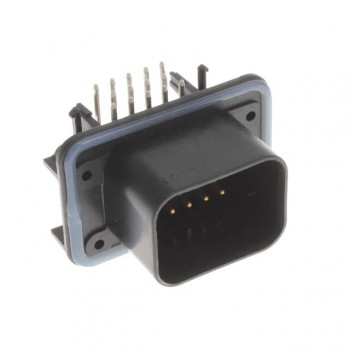

1-776267-1

CONN HEADER R/A 14POS 4MM

1-776267-1 Datasheet
  • 1: $11.93000
  • 36: $10.44138
  • 108: $9.44693

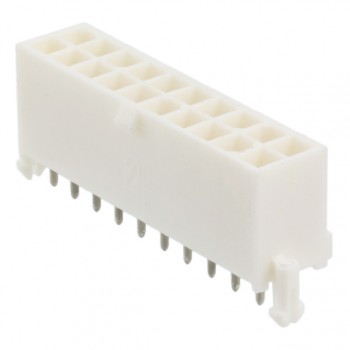

1-794077-1
