In Stock: 526

Can ship immediately

Pricing:
  • 1$1.41
  • 10$1.24281
  • 100$1.07261
  • 500$0.8776
  • 1,260$0.78009
  • 5,040$0.68258
  • 10,080$0.64845

Quote It

Technical Details

  • Series:Minitek® 2.00mm
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:6
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.157" (4.00mm)



  • Contact Length - Post:0.098" (2.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.240" (6.10mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Keying Slot
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Cream
  • Current Rating (Amps):2A (AC/DC)
  • Voltage Rating:200V (AC/DC)

Related Products


1053122204

CONN HEADER VERT 4POS 2.5MM

1053122204 Datasheet
  • 1: $1.42000
  • 10: $1.28807
  • 210: $1.10396

86130502114345E1LF

CONN HEADER VERT 50POS 2.54MM

86130502114345E1LF Datasheet
  • 1: $1.43000
  • 42: $1.18729
  • 126: $1.08831

76384-310LF

CONN HEADER VERT 10POS 2.54MM

76384-310LF Datasheet
  • 1: $1.41000
  • 24: $1.23753
  • 120: $1.06757

64900411122

CONN HEADER VERT 4POS 4.2MM

  • 1: $1.41000
  • 10: $1.38600
  • 50: $1.27900

2-1445096-3

CONN HEADER SMD 3POS 3MM

2-1445096-3 Datasheet
  • 1: $1.74000
  • 210: $1.47852
  • 420: $1.34995

M80-8790422

CONN HEADER VERT 4POS 2MM

M80-8790422 Datasheet
  • 1: $1.42000
  • 21: $1.29127
  • 105: $1.10665

3010-16-002-12-00

CONN HEADER R/A 16POS 2.54MM

3010-16-002-12-00 Datasheet
  • 1: $1.44000
  • 10: $1.26761
  • 100: $1.09318

68602-224HLF

CONN HEADER VERT 24POS 2.54MM

68602-224HLF Datasheet
  • 1: $1.42000
  • 10: $1.24400
  • 100: $1.07360

67996-216HLF

CONN HEADER VERT 16POS 2.54MM

67996-216HLF Datasheet
  • 1: $1.42000
  • 10: $1.24632
  • 100: $1.07516

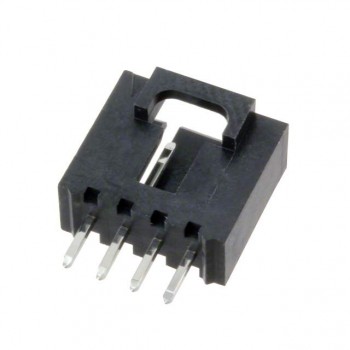

0705430250
