DF11GZ-20DP-2V(20)
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 20POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet DF11GZ-20DP-2V(20) Datasheet
-
ECAD Model
- Share
In Stock: 1,190
Can ship immediately
Pricing:
- 1$1.5
- 17$1.36179
- 102$1.16752
- 510$0.97292
- 1,003$0.83392
Quote It
Technical Details
- Series:DF11
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:20
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Detent Lock
- Contact Length - Mating:-
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.283" (7.19mm)
- Contact Shape:Circular
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:39.4µin (1.00µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon
- Features:Board Guide, Solder Retention
- Operating Temperature:-30°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Beige
- Current Rating (Amps):2A
- Voltage Rating:250V
Related Products
CONN HEADER VERT 22POS 2.54MM
- 1: $1.48000
- 10: $1.33895
- 100: $1.14724
CONN HEADER SMD 14POS 3MM
- 1: $1.48200

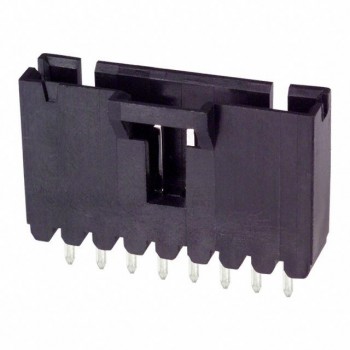

CONN HEADER VERT 8POS 2.54MM
