3522-24-0100-99

CnC Tech
In Stock: 993

Can ship immediately

Pricing:
  • 1$1.59
  • 10$1.4391
  • 100$1.23352
  • 850$0.99856
  • 1,700$0.85171
  • 5,100$0.78123
  • 10,200$0.76361

Quote It

Technical Details

  • Series:-
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:24
  • Number of Rows:2
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.146" (3.70mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA9T), Nylon 9T
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:-
  • Current Rating (Amps):1A
  • Voltage Rating:500VAC

Related Products


3010-20-002-13-00

CONN HEADER R/A 20POS 2.54MM

3010-20-002-13-00 Datasheet
  • 1: $1.61000
  • 10: $1.46419
  • 100: $1.25458

802-10-010-10-002101

CONN HEADER VERT 10POS 2.54MM

802-10-010-10-002101 Datasheet
  • 1: $1.59000
  • 10: $1.43786
  • 100: $1.23276

1510634010

CONN HEADER VERT 10POS 2MM

1510634010 Datasheet
  • 1: $1.59000
  • 24: $1.44378
  • 120: $1.23736

0039299106

CONN HEADER VERT 10POS 4.2MM

  • 1: $1.61000

572-002-420-101

CONN HEADER VERT 2POS 5.8MM

572-002-420-101 Datasheet
  • 1: $1.59000
  • 10: $1.43962
  • 25: $1.35127

A3A-12PA-2SV(71)

CONN HEADER SMD 12POS 2MM

A3A-12PA-2SV(71) Datasheet
  • 1: $1.59000
  • 40: $1.35624
  • 120: $1.23830

0901200134

CONN HEADER VERT 14POS 2.54MM

0901200134 Datasheet
  • 1: $1.61000
  • 10: $1.45906
  • 100: $1.25037

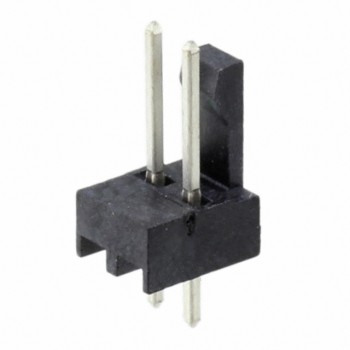

3-647050-2

CONN HEADER VERT 2POS 2.54MM

3-647050-2 Datasheet
  • 1: $1.60000
  • 10: $1.44873
  • 100: $1.24141

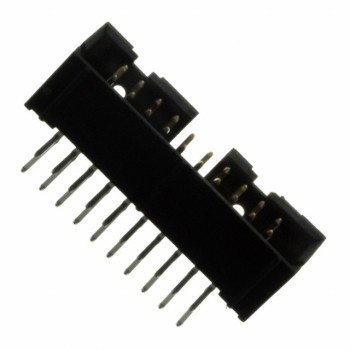

10056845-120LF

CONN HEADER R/A 20POS 2.54MM

10056845-120LF Datasheet
  • 1: $1.60000
  • 18: $1.41111
  • 108: $1.21754

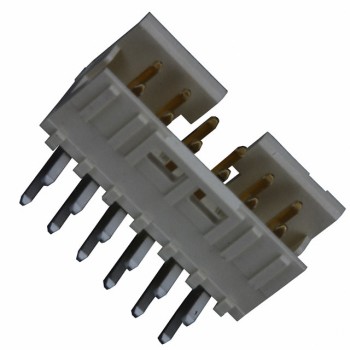

10072354-G01-12ULF
