SBH21-NBPN-D22-RA-BK
Sullins Connector Solutions
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 44POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet SBH21-NBPN-D22-RA-BK Datasheet
-
ECAD Model
- Share
In Stock: 424
Can ship immediately
Pricing:
- 1$1.68
- 10$1.528
- 100$1.3098
- 500$1.09148
- 1,000$0.93555
- 5,000$0.9009
Quote It
Technical Details
- Series:SBH21
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:44
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:-
- Contact Length - Post:0.110" (2.79mm)
- Overall Contact Length:-
- Insulation Height:0.213" (5.40mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:Flash
- Contact Finish - Post:Gold
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon
- Features:Keying Slot
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):2A
- Voltage Rating:-
Related Products

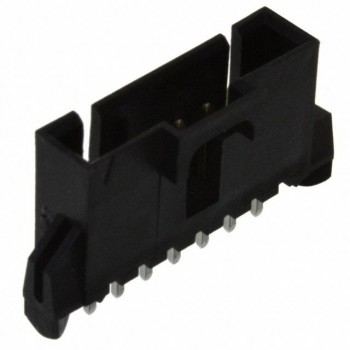

CONN HEADER R/A 32POS 2.54MM
