0757571481

Woodhead - Molex
In Stock: 987

Can ship immediately

Pricing:
  • 1$2.62
  • 10$2.51783
  • 266$1.83613
  • 532$1.78365
  • 1,064$1.52136
  • 5,054$1.36398

Quote It

Technical Details

  • Series:MX150 75757
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Blade
  • Pitch - Mating:0.138" (3.50mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.236" (6.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.441" (11.20mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.738" (18.75mm)
  • Insulation Height:0.177" (4.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:59.0µin (1.50µm)
  • Contact Finish - Post:Tin
  • Contact Material:Cartridge Brass
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


770743-1

CONN HEADER VERT 10POS 4.14MM

770743-1 Datasheet
  • 1: $2.62000
  • 10: $2.37477
  • 100: $2.03532

3010-40-002-12-00

CONN HEADER R/A 40POS 2.54MM

3010-40-002-12-00 Datasheet
  • 1: $2.65000
  • 10: $2.40422
  • 432: $1.86411

0346900200

CONN HEADER VERT 20POS 2.54MM

0346900200 Datasheet
  • 1: $2.64000
  • 10: $2.39313
  • 100: $2.05084

A1-20PA-2.54DSA(71)

CONN HEADER VERT 20POS 2.54MM

A1-20PA-2.54DSA(71) Datasheet
  • 1: $2.65000
  • 10: $2.40851
  • 25: $2.26105

0022232221

CONN HEADER VERT 22POS 2.54MM

0022232221 Datasheet
  • 1: $2.63000
  • 10: $2.38288
  • 100: $2.04247

0436501001

CONN HEADER R/A 10POS 3MM

  • 1: $2.65000

09185206903

CONN HEADER R/A 20POS 2.54MM

09185206903 Datasheet
  • 1: $2.63000
  • 10: $2.52000
  • 25: $2.31000

AWHW 16A-0102-T

CONN HEADER R/A 16POS 2.54MM

  • 1: $2.65000

5499913-1

CONN HEADER R/A 10POS 2.54MM

5499913-1 Datasheet
  • 1: $2.64000
  • 10: $2.41713
  • 100: $2.09765

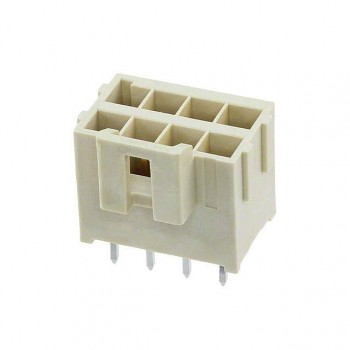

1722982208
