929700-06-36-RK

3M
In Stock: 407

Can ship immediately

Pricing:
  • 1$2.68
  • 10$2.43
  • 100$2.0832
  • 500$1.736
  • 1,000$1.488
  • 5,000$1.31936

Quote It

Technical Details

  • Series:929
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:36
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:0.710" (18.03mm)
  • Overall Contact Length:1.128" (28.65mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:200.0µin (5.08µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT)
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.5A
  • Voltage Rating:-

Related Products


929700-01-36-RK

CONN HEADER VERT 36POS 2.54MM

929700-01-36-RK Datasheet
  • 1: $2.68000
  • 10: $2.43000
  • 100: $2.08320

929700-08-36-RK

CONN HEADER VERT 36POS 2.54MM

929700-08-36-RK Datasheet
  • 1: $2.68000
  • 10: $2.43000
  • 100: $2.08320

09185266323

CONN HEADER R/A 26POS 2.54MM

09185266323 Datasheet
  • 1: $2.70000
  • 10: $2.59200
  • 25: $2.37600

0022041151

CONN HEADER VERT 15POS 2.5MM

  • 1: $2.68000

6-103635-5

CONN HEADER R/A 16POS 2.54MM

6-103635-5 Datasheet
  • 1: $2.68000
  • 12: $2.57631
  • 108: $2.14717

1722981114

CONN HEADER VERT 14POS 3.5MM

1722981114 Datasheet
  • 1: $2.72000
  • 10: $2.46662
  • 100: $2.11436

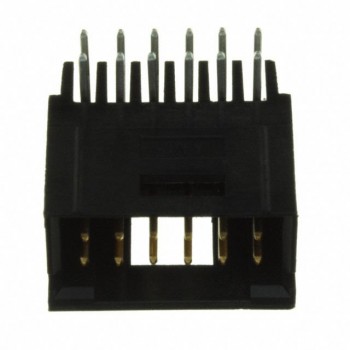

5-102617-4

CONN HEADER R/A 12POS 2.54MM

5-102617-4 Datasheet
  • 1: $2.72000
  • 10: $2.46950
  • 272: $1.91534

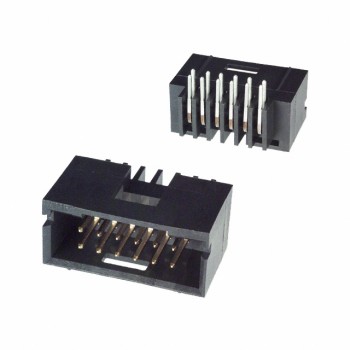

5-102570-4

CONN HEADER R/A 12POS 2.54MM

5-102570-4 Datasheet
  • 1: $2.72000
  • 10: $2.46956
  • 208: $2.11643

09185106902

CONN HEADER VERT 10POS 2.54MM

09185106902 Datasheet
  • 1: $2.70000
  • 10: $2.59200
  • 25: $2.37600

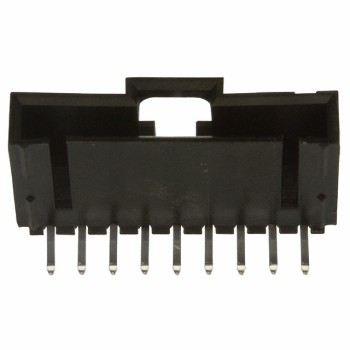

0705530043
