5-102570-4
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 12POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 5-102570-4 Datasheet
-
ECAD Model
- Share
In Stock: 227
Can ship immediately
Pricing:
- 1$2.72
- 10$2.46956
- 208$2.11643
- 624$1.76369
- 1,040$1.51174
- 5,200$1.3404
Quote It
Technical Details
- Series:AMPMODU Mod II
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:12
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Detent Lock
- Contact Length - Mating:0.318" (8.08mm)
- Contact Length - Post:0.135" (3.43mm)
- Overall Contact Length:-
- Insulation Height:0.400" (10.16mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:15.0µin (0.38µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Thermoplastic
- Features:-
- Operating Temperature:-65°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):3A
- Voltage Rating:-
Related Products
CONN HEADER R/A 9POS 2.54MM
- 1: $2.70000

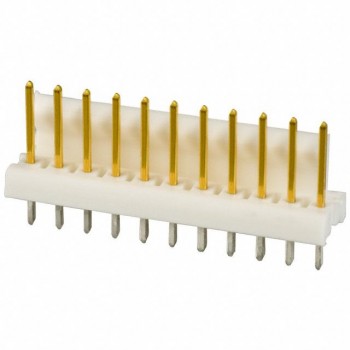

CONN HEADER VERT 12POS 3MM
- 1: $2.78000

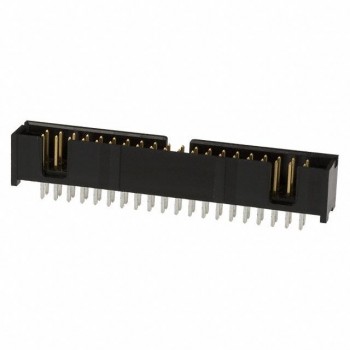

CONN HEADER VERT 34POS 2.54MM
