0741640016

Woodhead - Molex
In Stock: 223

Can ship immediately

Pricing:
  • 1$4.04
  • 10$3.881
  • 100$3.2338
  • 513$2.74873
  • 1,026$2.3445

Quote It

Technical Details

  • Series:C-Grid 74164
  • Package:Tube
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.315" (8.00mm)



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:-
  • Insulation Height:0.420" (10.67mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
  • Features:Board Guide
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


N3431-6002RB

CONN HEADER VERT 34POS 2.54MM

N3431-6002RB Datasheet
  • 1: $4.07000
  • 10: $3.90720
  • 200: $3.25600

FI-S25P-HFE

CONN HEADER SMD R/A 25POS 1.25MM

FI-S25P-HFE Datasheet
  • 1: $4.12000
  • 10: $3.95035
  • 100: $3.29196

PEC36SFEN

CONN HEADER VERT 36POS 2.54MM

PEC36SFEN Datasheet
  • 1: $4.16000
  • 10: $3.71800
  • 100: $3.06180

45220-600230

CONN HEADER VERT 20POS 1.27MM

45220-600230 Datasheet
  • 1: $4.20000
  • 10: $4.03242
  • 100: $3.36000

09185265904

CONN HEADER VERT 26POS 2.54MM

09185265904 Datasheet
  • 1: $4.18000
  • 10: $4.00727
  • 25: $3.67333

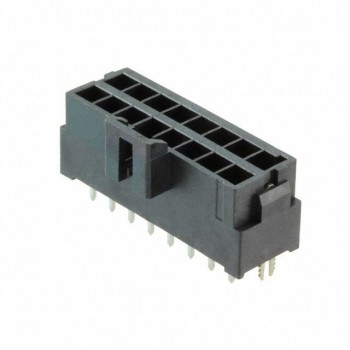

1722991116
