3221-50-0200-00
CnC Tech
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 50POS 1.27MM
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 1,166
Can ship immediately
Pricing:
- 1$2.51
Quote It
Technical Details
- Series:-
- Package:Tray
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.050" (1.27mm)
- Number of Positions:50
- Number of Rows:2
- Row Spacing - Mating:0.050" (1.27mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:-
- Contact Length - Post:0.083" (2.11mm)
- Overall Contact Length:-
- Insulation Height:0.201" (5.10mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:Flash
- Contact Finish - Post:-
- Contact Material:Brass
- Insulation Material:Polyamide (PA6T), Nylon 6T
- Features:Keying Slot
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:-
- Current Rating (Amps):1A
- Voltage Rating:-
Related Products
CONN HEADER VERT 4POS 2.54MM
- 1: $2.48000
- 10: $2.25400
- 100: $1.93200

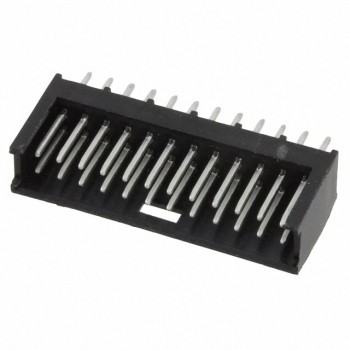

CONN HEADER R/A 40POS 2.54MM
