In Stock: 2,761

Can ship immediately

Pricing:
  • 1$0.81
  • 10$0.711
  • 25$0.6688
  • 50$0.6408
  • 100$0.613
  • 250$0.55728
  • 500$0.50156

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:36
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.448" (11.39mm)
  • Insulation Height:0.098" (2.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A per Contact
  • Voltage Rating:-

Related Products


961210-6404-AR

CONN HEADER VERT 10POS 2.54MM

961210-6404-AR Datasheet
  • 1: $0.81000
  • 10: $0.71888
  • 25: $0.67966

NRPN052PARN-RC

CONN HEADER R/A 10POS 2MM

NRPN052PARN-RC Datasheet
  • 1: $0.81000
  • 10: $0.71000
  • 25: $0.66840

4-103186-0-04

CONN HEADER VERT 8POS 2.54MM

4-103186-0-04 Datasheet
  • 1: $0.81000
  • 10: $0.71496
  • 25: $0.67262

9-146285-0-05

CONN HEADER VERT 5POS 2.54MM

9-146285-0-05 Datasheet
  • 1: $0.81000
  • 10: $0.71280
  • 25: $0.67133

4-102977-0-03

CONN HEADER VERT 6POS 2.54MM

4-102977-0-03 Datasheet
  • 1: $0.81000
  • 10: $0.71280
  • 25: $0.67046

0026481082

CONN HEADER R/A 8POS 3.96MM

0026481082 Datasheet
  • 1: $0.81000
  • 10: $0.71300
  • 25: $0.67080

GEC01SFBN-M30

CONN HEADER SMD 1POS

GEC01SFBN-M30 Datasheet
  • 1: $0.81000
  • 10: $0.72700
  • 100: $0.59840

BM02B-NSHSS-TBT(LF)(SN)

CONN HEADER SMD 2POS 1MM

BM02B-NSHSS-TBT(LF)(SN) Datasheet
  • 1: $0.81000
  • 1000: $0.41817
  • 2000: $0.40550

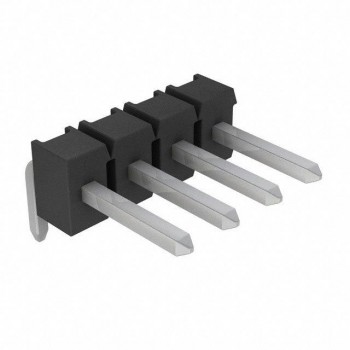

9-103759-0-04
