961230-6404-AR

3M
In Stock: 2,280

Can ship immediately

Pricing:
  • 1$2.26
  • 10$2.048
  • 25$1.9228
  • 50$1.8392
  • 100$1.7556
  • 250$1.5884
  • 500$1.463

Quote It

Technical Details

  • Series:961
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:30
  • Number of Rows:2
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.217" (5.50mm)



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:0.445" (11.30mm)
  • Insulation Height:0.098" (2.50mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-25°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2A
  • Voltage Rating:-

Related Products

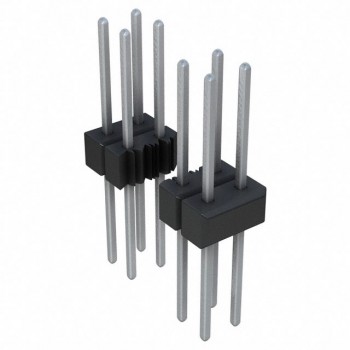

PEC13DFCN
