In Stock: 181

Can ship immediately

Pricing:
  • 1$5.56
  • 10$5.34924
  • 100$4.52628
  • 500$3.90906
  • 1,000$3.39471

Quote It

Technical Details

  • Series:AMP-Latch
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:50
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.135" (3.43mm)
  • Overall Contact Length:-
  • Insulation Height:0.360" (9.14mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold-Palladium
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin-Lead
  • Contact Material:Brass
  • Insulation Material:-
  • Features:Keying Slot
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A per Contact
  • Voltage Rating:-

Related Products


PBC16DBCN

CONN HEADER R/A 32POS 2.54MM

PBC16DBCN Datasheet
  • 1: $5.57000
  • 10: $4.98300
  • 100: $4.10330

0901310150

CONN HEADER VERT 60POS 2.54MM

0901310150 Datasheet
  • 1: $5.58000
  • 10: $5.35554
  • 25: $4.90914

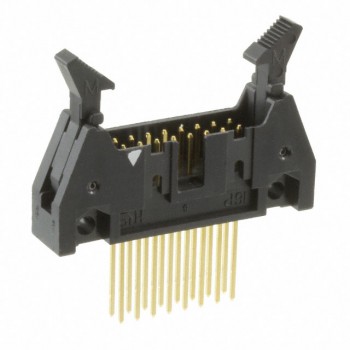

HIF3BA-16P-2.54W

CONN HEADER VERT 16POS 2.54MM

HIF3BA-16P-2.54W Datasheet
  • 1: $5.60000
  • 10: $5.37600
  • 100: $4.48000

929665-09-15-I

CONN HEADER VERT 30POS 2.54MM

929665-09-15-I Datasheet
  • 1: $5.71000
  • 10: $5.48200
  • 25: $5.02480

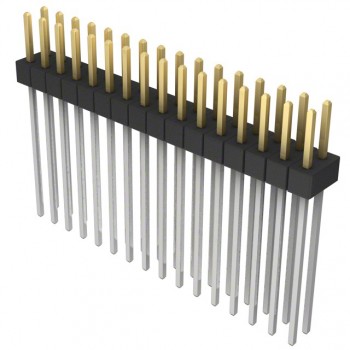

PBC16DAGN

CONN HEADER VERT 32POS 2.54MM

PBC16DAGN Datasheet
  • 1: $5.75000
  • 10: $5.14500
  • 100: $4.23730

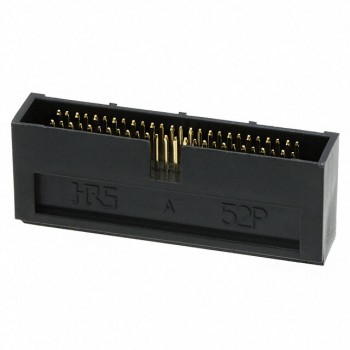

HIF6A-52PA-1.27DS(71)
