M80-5400842

Harwin
In Stock: 157

Can ship immediately

Pricing:
  • 1$18.54
  • 14$17.21798
  • 112$13.24475
  • 504$12.09689

Quote It

Technical Details

  • Series:Datamate J-Tek
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:8
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Threaded
  • Contact Length - Mating:-



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:-
  • Insulation Height:0.218" (5.55mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:29.5µin (0.75µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyphenylene Sulfide (PPS), Glass Filled
  • Features:Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.2A
  • Voltage Rating:800V

Related Products


DTM13-12PA-R008

CONN HEADER R/A 12POS

DTM13-12PA-R008 Datasheet
  • 1: $18.66000
  • 10: $17.33102
  • 25: $15.55306

M80-5401042

CONN HEADER R/A 10POS 2MM

M80-5401042 Datasheet
  • 1: $18.77000
  • 13: $17.42567
  • 104: $13.40462

M80-5401005

CONN HEADER R/A 10POS 2MM

M80-5401005 Datasheet
  • 1: $19.66000
  • 13: $17.74393
  • 104: $15.40674

M83-LMT1M2N60-0000-000

CONN HEADER VERT 60POS 2MM

M83-LMT1M2N60-0000-000 Datasheet
  • 1: $19.85000
  • 12: $17.92014
  • 36: $17.16934

1-776163-1

CONN HEADER R/A 35POS 4MM

1-776163-1 Datasheet
  • 1: $20.06000
  • 10: $18.23129
  • 100: $15.49660

5-104068-6

CONN HEADER VERT 60POS 1.27MM

5-104068-6 Datasheet
  • 1: $20.15000
  • 11: $18.71232
  • 110: $14.39439

5-104069-7

CONN HEADER R/A 60POS 1.27MM

5-104069-7 Datasheet
  • 1: $20.16000
  • 11: $18.20000
  • 110: $15.80277

M80-5402642

CONN HEADER R/A 26POS 2MM

M80-5402642 Datasheet
  • 1: $20.51000
  • 14: $19.04803
  • 105: $14.65233

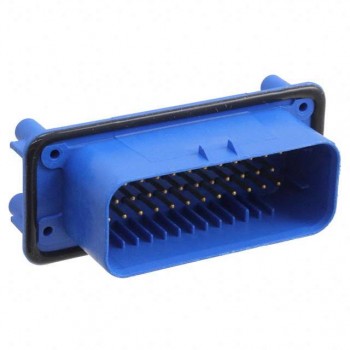

1-776231-5
