In Stock: 222

Can ship immediately

Pricing:
  • 1$0.71
  • 10$0.67253
  • 100$0.5252
  • 500$0.46223
  • 1,000$0.38869
  • 5,000$0.34667
  • 10,000$0.32565

Quote It

Technical Details

  • Series:CT
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:9
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 3 Wall
  • Mounting Type:Through Hole
  • Termination:Kinked Pin, Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.177" (4.50mm)



  • Contact Length - Post:0.126" (3.20mm)
  • Overall Contact Length:0.370" (9.40mm)
  • Insulation Height:0.268" (6.80mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA66), Nylon 6/6
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:125VAC

Related Products


B11B-XASK-1-A(LF)(SN)

CONN HEADER VERT 11POS 2.5MM

  • 1: $0.71000
  • 10: $0.66500
  • 100: $0.50990

S05B-ZESK-2D(T)(LF)(SN)

CONN HEADER R/A 5POS 1.5MM

S05B-ZESK-2D(T)(LF)(SN) Datasheet
  • 1: $0.71000
  • 10: $0.67000
  • 100: $0.51380

DF14A-6P-1.25H(26)

CONN HEADER SMD R/A 6POS 1.25MM

DF14A-6P-1.25H(26) Datasheet
  • 1: $1.31000
  • 1000: $0.77830

M20-8900605

CONN HEADER SMD R/A 6POS 2.54MM

M20-8900605 Datasheet
  • 1: $0.73000
  • 10: $0.68293
  • 100: $0.52358

DF1EC-5P-2.5DSA(35)

CONN HEADER VERT 5POS 2.5MM

DF1EC-5P-2.5DSA(35) Datasheet
  • 1: $0.73000
  • 10: $0.63800
  • 100: $0.55000

M20-8750542

CONN HEADER SMD 10POS 2.54MM

M20-8750542 Datasheet
  • 1: $0.74000
  • 48: $0.62538
  • 144: $0.53281

10132449-0821GLF

CONN HEADER R/A 8POS 3MM

10132449-0821GLF Datasheet
  • 1: $0.73000
  • 10: $0.68813
  • 224: $0.52790

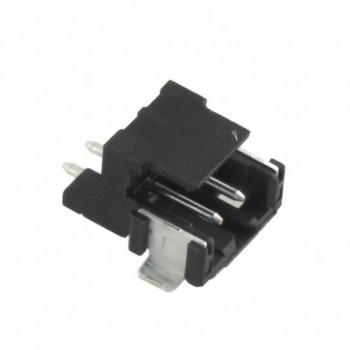

2-292173-2

CONN HEADER SMD R/A 2POS 2MM

2-292173-2 Datasheet
  • 1: $1.16000
  • 500: $0.77568
  • 1000: $0.69811

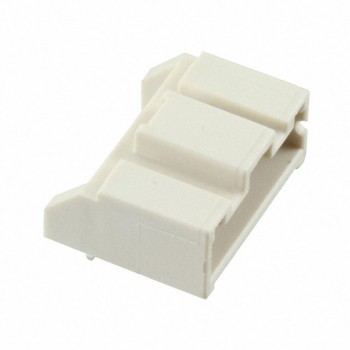

DF1E-6P-2.5DS(35)

CONN HEADER R/A 6POS 2.5MM

DF1E-6P-2.5DS(35) Datasheet
  • 1: $0.74000
  • 10: $0.69771
  • 100: $0.53491

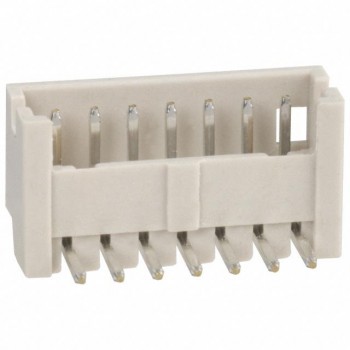

DF13-7P-1.25DS(20)
