10132449-0821GLF
Storage & Server IO (Amphenol ICC)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 8POS 3MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 10132449-0821GLF Datasheet
-
ECAD Model
- Share
In Stock: 103
Can ship immediately
Pricing:
- 1$0.73
- 10$0.68813
- 224$0.5279
- 672$0.45904
- 1,120$0.37871
- 5,152$0.3328
- 10,080$0.30985
Quote It
Technical Details
- Series:Minitek® Pwr 3.0 High Current
- Package:Tray
- Part Status:Active
- Connector Type:Plug
- Contact Type:Male Pin
- Pitch - Mating:0.118" (3.00mm)
- Number of Positions:8
- Number of Rows:2
- Row Spacing - Mating:0.118" (3.00mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.126" (3.20mm)
- Overall Contact Length:-
- Insulation Height:0.343" (8.71mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Polyamide (PA9T), Nylon 9T
- Features:Board Lock, Glow Wire Compliant
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:250V
Related Products
CONN HEADER VERT 12POS 1.27MM
- 1: $0.74000
- 10: $0.69300
- 100: $0.53130

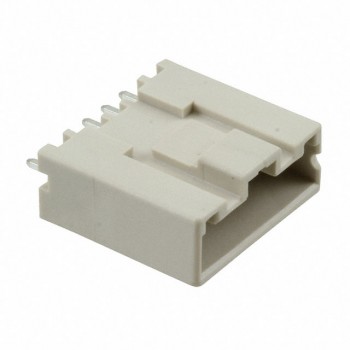

CONN HEADER VERT 7POS 2.5MM
