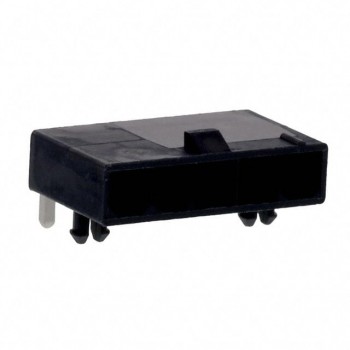

0903259012
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 12POS 1.27MM
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 221
Can ship immediately
Pricing:
- 1$1.09
Quote It
Technical Details
- Series:Picoflex PF-50 90325
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Blade
- Pitch - Mating:0.050" (1.27mm)
- Number of Positions:12
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 2 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:-
- Contact Length - Post:0.130" (3.30mm)
- Overall Contact Length:-
- Insulation Height:0.252" (6.40mm)
- Contact Shape:Rectangular
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:118.1µin (3.00µm)
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
- Features:Board Lock
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):1.2A
- Voltage Rating:250V
