In Stock: 118

Can ship immediately

Pricing:
  • 1$2.49
  • 34$2.11801
  • 102$1.93391
  • 510$1.61163
  • 1,020$1.38139
  • 5,032$1.22484

Quote It

Technical Details

  • Series:AMPMODU Mod II
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:5
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:-
  • Insulation Height:0.214" (5.44mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-65°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products


98414-G06-20ULF

CONN HEADER VERT 20POS 2MM

98414-G06-20ULF Datasheet
  • 1: $2.50000
  • 25: $2.13074
  • 100: $1.94545

XJ8C-1411

CONN HEADER VERT 14POS 2.54MM

XJ8C-1411 Datasheet
  • 1: $2.53000
  • 10: $2.29605
  • 100: $1.96768

0026604160

CONN HEADER VERT 16POS 3.96MM

0026604160 Datasheet
  • 1: $2.54000
  • 10: $2.30900
  • 100: $1.97930

DF11-28DP-2DSA(01)

CONN HEADER VERT 28POS 2MM

DF11-28DP-2DSA(01) Datasheet
  • 1: $2.56000
  • 10: $2.32296
  • 100: $1.99111

10112690-G03-10ULF

CONN HEADER SMD R/A 20POS 2MM

10112690-G03-10ULF Datasheet
  • 1: $2.56000
  • 28: $2.18282
  • 112: $1.99287

6-103635-1

CONN HEADER R/A 12POS 2.54MM

6-103635-1 Datasheet
  • 1: $2.57000
  • 16: $2.33241
  • 112: $1.99902

4-794677-2

CONN HEADER R/A 12POS 3MM

4-794677-2 Datasheet
  • 1: $2.60000
  • 10: $2.36228
  • 169: $2.02442

M80-8540645

CONN HEADER VERT 6POS 2MM

M80-8540645 Datasheet
  • 1: $2.60000
  • 26: $2.21723
  • 104: $2.02453

0901210780

CONN HEADER R/A 20POS 2.54MM

0901210780 Datasheet
  • 1: $2.62000
  • 10: $2.51581
  • 100: $2.09661

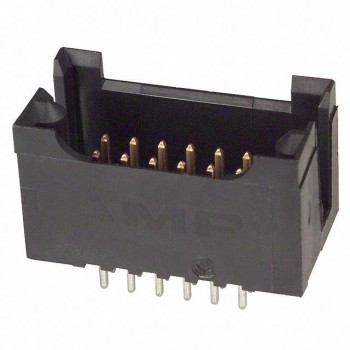

5-102567-1
