0039299147

Woodhead - Molex
In Stock: 153

Can ship immediately

Pricing:
  • 1$2.41

Quote It

Technical Details

  • Series:Mini-Fit Jr 5566
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.165" (4.20mm)
  • Number of Positions:14
  • Number of Rows:2
  • Row Spacing - Mating:0.165" (4.20mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-



  • Contact Length - Post:0.138" (3.50mm)
  • Overall Contact Length:-
  • Insulation Height:0.504" (12.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:35.4µin (0.90µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA66), Nylon 6/6
  • Features:Board Lock
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


3-1445093-0

CONN HEADER VERT 10POS 3MM

3-1445093-0 Datasheet
  • 1: $2.42000
  • 10: $2.19817
  • 112: $1.88428

BHR-20-VUA-ML

CONN HEADER VERT 20POS 2.54MM

  • 1: $2.42000
  • 10: $2.19413
  • 160: $1.88035

62401021622

CONN HEADER VERT 10POS 2MM

  • 1: $2.42000
  • 10: $2.09400
  • 100: $1.91000

09185207323

CONN HEADER R/A 20POS 2.54MM

09185207323 Datasheet
  • 1: $2.46000
  • 10: $2.23552
  • 25: $2.09838

1-640389-6

CONN HEADER R/A 16POS 3.96MM

1-640389-6 Datasheet
  • 1: $2.47000
  • 10: $2.24500
  • 100: $1.92440

1-103735-1

CONN HEADER VERT 12POS 2.54MM

1-103735-1 Datasheet
  • 1: $2.49000
  • 16: $2.26322
  • 112: $1.93961

0348260201

CONN HEADER R/A 20POS 2MM

0348260201 Datasheet
  • 1: $2.51000
  • 10: $2.28640
  • 400: $1.81182

1723102206

CONN HEADER R/A 6POS 3.5MM

1723102206 Datasheet
  • 1: $2.50000
  • 10: $2.40400
  • 100: $2.00300

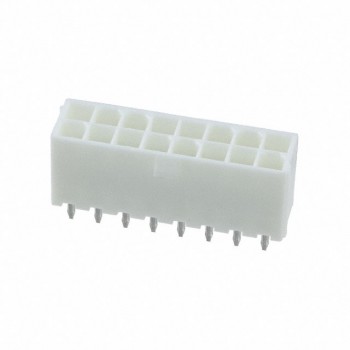

0039310160
