FX30B-2P-7.62DS

Hirose
In Stock: 138

Can ship immediately

Pricing:
  • 1$4.39
  • 10$4.20929
  • 240$3.50775

Quote It

Technical Details

  • Series:FunctionMax™ FX30B
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Blade
  • Pitch - Mating:0.300" (7.62mm)
  • Number of Positions:2
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:-



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:-
  • Insulation Height:0.433" (11.00mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:3.90µin (0.099µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polyamide (PA), Nylon
  • Features:Board Guide, Board Lock
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):16A
  • Voltage Rating:250V

Related Products


5102160-5

CONN HEADER R/A 24POS 2.54MM

5102160-5 Datasheet
  • 1: $4.41000
  • 10: $4.23634
  • 100: $3.53028

FX30B-3P-3.81DSA30

CONN HEADER VERT 3POS 3.81MM

FX30B-3P-3.81DSA30 Datasheet
  • 1: $4.42000
  • 42: $3.88531
  • 126: $3.53214

1722991212

CONN HEADER VERT 12POS 3.5MM

1722991212 Datasheet
  • 1: $4.47000
  • 10: $4.29500
  • 100: $3.57940

1-794071-0

CONN HEADER VERT 22POS 4.14MM

1-794071-0 Datasheet
  • 1: $4.47000
  • 10: $4.28993
  • 100: $3.57473

1053142314

CONN HEADER R/A 14POS 2.5MM

1053142314 Datasheet
  • 1: $4.56000
  • 90: $3.83044
  • 180: $3.64800

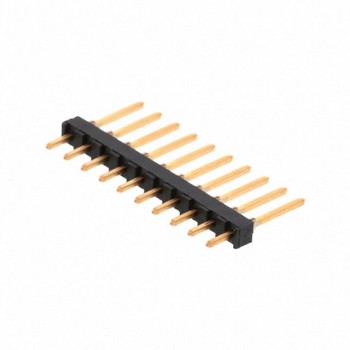

1-87220-0

CONN HEADER VERT 10POS 2.54MM

1-87220-0 Datasheet
  • 1: $4.56000
  • 10: $4.38100
  • 100: $3.65060

XG4A-6032

CONN HEADER VERT 60POS 2.54MM

XG4A-6032 Datasheet
  • 1: $4.57000
  • 10: $4.40278
  • 100: $3.71946

6-146252-3

CONN HEADER VERT 26POS 2.54MM

6-146252-3 Datasheet
  • 1: $4.58000
  • 10: $4.39313
  • 100: $3.66054

09185507324

CONN HEADER VERT 50POS 2.54MM

09185507324 Datasheet
  • 1: $4.60000
  • 10: $4.41059
  • 25: $4.04304

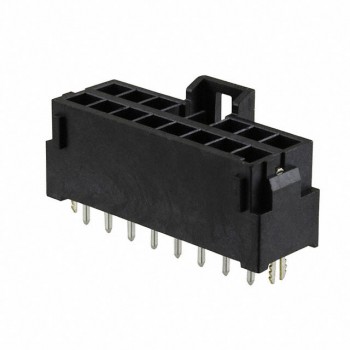

1722991216
