2170630087
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- Description2.0 ST ASSY 8CKT ETP BK CV_GW PO
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 184
Can ship immediately
Pricing:
- 1$1.63
Quote It
Technical Details
- Series:*
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:8
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Latch Lock
- Contact Length - Mating:-
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.390" (9.91mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin-Bismuth
- Contact Finish Thickness - Mating:39.4µin (1.00µm)
- Contact Finish - Post:Tin-Bismuth
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon
- Features:Solder Retention
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:250V
Related Products
MTK MICROSPACE HEADER-ASSY STG T
- 1: $1.15423
WIRE TO BOARD 1.0MM PITCH,STR SM
- 1: $1.84000
8W, 1.00MM PITCH PIN HDR, SIL, S
- 1: $1.17000
CONN HDR 2MM DUAL GLD PCB 12POS
- 1: $1.19000

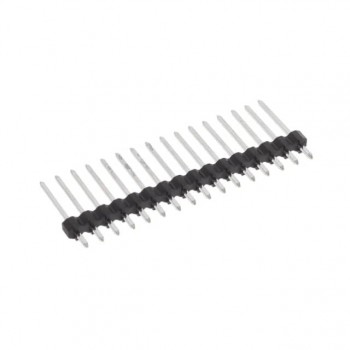

CONN HEADER VERT 16POS 2.54MM
