852-80-006-10-001101
Preci-Dip
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 6POS 1.27MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 852-80-006-10-001101 Datasheet
-
ECAD Model
- Share
In Stock: 167
Can ship immediately
Pricing:
- 1$0.4191
- 770$0.4191
Quote It
Technical Details
- Series:852
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.050" (1.27mm)
- Number of Positions:6
- Number of Rows:2
- Row Spacing - Mating:0.050" (1.27mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.118" (3.00mm)
- Contact Length - Post:0.118" (3.00mm)
- Overall Contact Length:0.319" (8.10mm)
- Insulation Height:0.075" (1.90mm)
- Contact Shape:Circular
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):1A
- Voltage Rating:150VDC
Related Products
MINITEK PWR3.0 VT HEADER
- 1: $0.41910
MINITEK PWR3.0 RA HEADER
- 1: $0.41910
MINITEK PWR3.0 RA HEADER
- 1: $0.41910
MINITEK PWR3.0 VT HEADER
- 1: $0.41910
CONN HEADER SMD R/A 11POS 1.5MM
- 1: $0.41947
- 1000: $0.41947

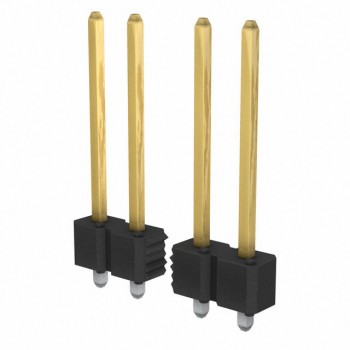

CONN HEADER VERT 8POS 2.54MM
