In Stock: 177

Can ship immediately

Pricing:
  • 1$0.63017
  • 3,000$0.58261

Quote It

Technical Details

  • Series:Minitek®
  • Package:Bag
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:8
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Shrouded - 2 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.157" (4.00mm)



  • Contact Length - Post:0.122" (3.10mm)
  • Overall Contact Length:-
  • Insulation Height:0.220" (5.60mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:-
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Keying Slot
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Cream
  • Current Rating (Amps):2A (AC/DC)
  • Voltage Rating:200V (AC/DC)

Related Products


90309-908LF

CONN HEADER VERT 8POS 2MM

90309-908LF Datasheet
  • 1: $0.63017
  • 3000: $0.58261

95615-508LF

CONN HEADER SMD 8POS 2MM

95615-508LF Datasheet
  • 1: $0.63017
  • 3000: $0.58261

95615-508TRLF

CONN HEADER SMD 8POS 2MM

95615-508TRLF Datasheet
  • 1: $0.63017
  • 3000: $0.58261

95615-708LF

CONN HEADER SMD 8POS 2MM

95615-708LF Datasheet
  • 1: $0.63017
  • 3000: $0.58261

95615-908LF

CONN HEADER SMD 8POS 2MM

95615-908LF Datasheet
  • 1: $0.63017
  • 3000: $0.58261

0717640504

CONN HEADER R/A 4POS 2.54MM

0717640504 Datasheet
  • 1: $0.63029

0416720003

CONN HEADER R/A 4POS 3.96MM

0416720003 Datasheet
  • 1: $0.63031
  • 3600: $0.63031

1-1586587-2

CONN HEADER VERT 12POS 4.2MM

1-1586587-2 Datasheet
  • 1: $0.63045
  • 770: $0.63045

77315-401-15LF

CONN HEADER R/A 15POS 2.54MM

77315-401-15LF Datasheet
  • 1: $0.63053
  • 600: $0.58302

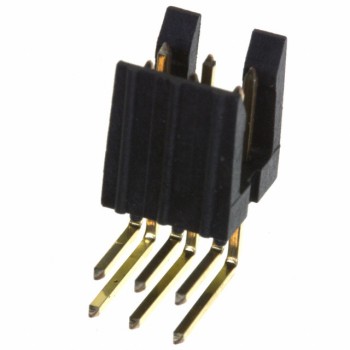

76382-408LF
