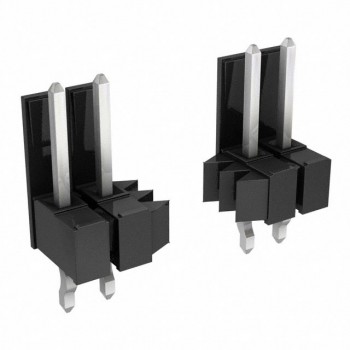

644489-2
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 2POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 644489-2 Datasheet
-
ECAD Model
- Share
In Stock: 169
Can ship immediately
Pricing:
- 1$0.81089
- 10,000$0.81089
Quote It
Technical Details
- Series:MTA-100
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:2
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Friction Lock
- Contact Length - Mating:0.200" (5.08mm)
- Contact Length - Post:0.130" (3.30mm)
- Overall Contact Length:-
- Insulation Height:0.343" (8.71mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin-Lead
- Contact Material:Copper Alloy
- Insulation Material:Polyester
- Features:-
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:250VAC
