In Stock: 196

Can ship immediately

Pricing:
  • 1$1.17163
  • 600$1.17163

Quote It

Technical Details

  • Series:BERGSTIK® II
  • Package:Bag
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:32
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.183" (4.65mm)
  • Overall Contact Length:0.513" (13.03mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:-
  • Contact Material:Phosphor Bronze
  • Insulation Material:-
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


5-103324-7

CONN HEADER R/A 14POS 2.54MM

5-103324-7 Datasheet
  • 1: $1.17197
  • 1000: $1.08366

826634-8

CONN HEADER R/A 16POS 2.54MM

826634-8 Datasheet
  • 1: $1.17198
  • 3600: $1.13785

5-104436-4

CONN HEADER R/A 8POS 2.54MM

5-104436-4 Datasheet
  • 1: $1.17210
  • 500: $0.93276

350-80-118-01-899101

CONN HEADER SMD 18POS 2.54MM

350-80-118-01-899101 Datasheet
  • 1: $1.17211
  • 450: $1.07944

0366080007

CONN HEADER 9POS W/OUT POL PEG

0366080007 Datasheet
  • 1: $1.17218
  • 1560: $1.17218

3-102898-6

CONN HEADER VERT 4POS 2.54MM

3-102898-6 Datasheet
  • 1: $1.17220
  • 500: $1.08698

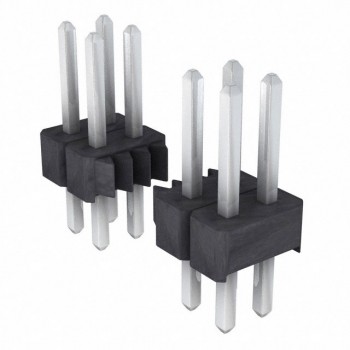

892-80-048-10-001101
