In Stock: 122

Can ship immediately

Pricing:
  • 1$1.2474
  • 600$1.1536

Quote It

Technical Details

  • Series:BERGSTIK®
  • Package:Bag
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:15
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.318" (8.08mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


95293-401-15LF

CONN HEADER SMD 15POS 2.54MM

95293-401-15LF Datasheet
  • 1: $1.24740
  • 600: $1.15360

95293-402-15LF

CONN HEADER SMD 15POS 2.54MM

95293-402-15LF Datasheet
  • 1: $1.24740
  • 600: $1.15360

95293-801-15LF

CONN HEADER SMD 15POS 2.54MM

95293-801-15LF Datasheet
  • 1: $1.24740
  • 600: $1.15360

95293-802-15LF

CONN HEADER SMD 15POS 2.54MM

95293-802-15LF Datasheet
  • 1: $1.24740
  • 600: $1.15360

54202-G0808AB07LF

CONN HEADER SMD 16POS 2.54MM

54202-G0808AB07LF Datasheet
  • 1: $1.24740
  • 600: $1.15360

73398-107ALF

CONN HEADER SMD 16POS 2.54MM

73398-107ALF Datasheet
  • 1: $1.24740
  • 600: $1.15360

PCC05DAAN

CONN HEADER VERT 10POS 2.54MM

PCC05DAAN Datasheet
  • 1: $1.24740
  • 100: $ 1.24740

2-826646-0

CONN HEADER VERT 20POS 2.54MM

2-826646-0 Datasheet
  • 1: $1.24767
  • 3600: $1.21134

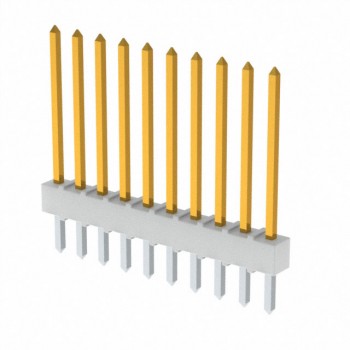

0022102104
