SBH31-NBPB-D17-ST-BK

Sullins Connector Solutions
In Stock: 146

Can ship immediately

Pricing:
  • 1$1.50336
  • 1,000$1.50336

Quote It

Technical Details

  • Series:SBH31
  • Package:Tray
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:34
  • Number of Rows:2
  • Row Spacing - Mating:0.050" (1.27mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:-



  • Contact Length - Post:0.094" (2.40mm)
  • Overall Contact Length:-
  • Insulation Height:0.213" (5.40mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA9T), Nylon 9T
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A
  • Voltage Rating:-

Related Products


4-644694-5

CONN HEADER R/A 15POS 2.54MM

4-644694-5 Datasheet
  • 1: $1.50368
  • 500: $1.50368

0757571181

CONN HEADER VERT 16POS 3.5MM

0757571181 Datasheet
  • 1: $1.50394
  • 1064: $1.50394

0757571482

CONN HEADER VERT 16POS 3.5MM

0757571482 Datasheet
  • 1: $1.50394
  • 1368: $1.50394

0757571182

CONN HEADER VERT 16POS 3.5MM

0757571182 Datasheet
  • 1: $1.50394
  • 1368: $1.50394

5-103164-2

CONN HEADER R/A 8POS 2.54MM

5-103164-2 Datasheet
  • 1: $1.50409
  • 2576: $1.29932

87224-8

CONN HEADER VERT 8POS 2.54MM

87224-8 Datasheet
  • 1: $1.50422

5-102898-1

CONN HEADER VERT 8POS 2.54MM

5-102898-1 Datasheet
  • 1: $1.50440
  • 2000: $1.44484

802-V3-008-22-002101

CONN HEADER R/A 8POS 2.54MM

802-V3-008-22-002101 Datasheet
  • 1: $1.50443
  • 370: $1.31414

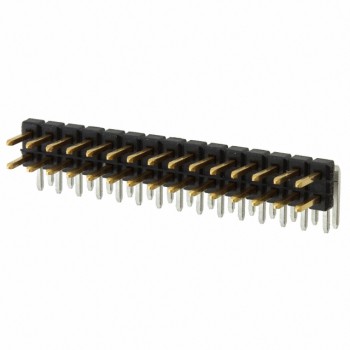

1-5176837-4
