892-18-024-10-001101

Preci-Dip
In Stock: 135

Can ship immediately

Pricing:
  • 1$1.68316
  • 500$1.50998

Quote It

Technical Details

  • Series:892
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:24
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.236" (6.00mm)



  • Contact Length - Post:0.122" (3.10mm)
  • Overall Contact Length:0.458" (11.64mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


880-70-033-20-001101

CONN HEADER R/A 33POS 2MM

880-70-033-20-001101 Datasheet
  • 1: $1.68341
  • 320: $1.52619

0878981056

CONN HEADER SMD 10POS 2.54MM

0878981056 Datasheet
  • 1: $1.68345
  • 1320: $1.68345

SMH100-LPPE-S27-RA-BK

CONN HEADER R/A 27POS 1MM

SMH100-LPPE-S27-RA-BK Datasheet
  • 1: $1.68345
  • 1000: $1.68345

77317-103-36LF

CONN HEADER R/A 36POS 2.54MM

77317-103-36LF Datasheet
  • 1: $1.68360
  • 300: $1.55667

77313-802-58LF

CONN HEADER VERT 58POS 2.54MM

77313-802-58LF Datasheet
  • 1: $1.68360
  • 300: $1.55667

77315-118-34LF

CONN HEADER R/A 34POS 2.54MM

77315-118-34LF Datasheet
  • 1: $1.68360
  • 300: $1.55667

77317-112-36LF

CONN HEADER R/A 36POS 2.54MM

77317-112-36LF Datasheet
  • 1: $1.68360
  • 400: $1.55668

77317-403-36LF

CONN HEADER R/A 36POS 2.54MM

77317-403-36LF Datasheet
  • 1: $1.68360
  • 400: $1.55668

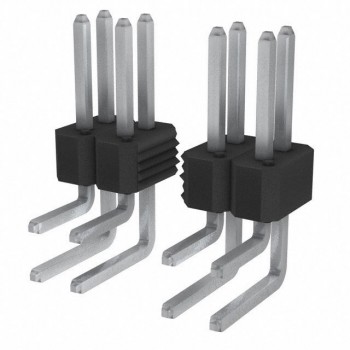

77317-404-36LF
