2-2842275-6
TE Connectivity AMP Connectors- Lifecycle status Active
- RoHS RoHS Compliant
- Description26P,2MM,SHRD HDR,DRVT,SMD,0.38AU
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 117
Can ship immediately
Pricing:
- 1$1.68796
Quote It
Technical Details
- Series:AMPMODU
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:26
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 2 Wall
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Detent Lock
- Contact Length - Mating:0.146" (3.70mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.252" (6.40mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:15.0µin (0.38µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Thermoplastic
- Features:Pick and Place
- Operating Temperature:-40°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):2A
- Voltage Rating:125VAC/DC
Related Products
26P,2MM,SHRD HDR,DRVT,SMD,0.38AU
- 1: $1.68796
CONN HEADER VERT 26POS 2.54MM
- 1: $1.68826
- 800: $1.68826

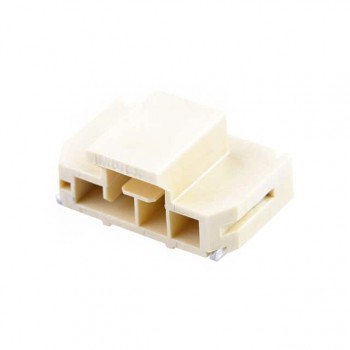

NANO-FIT HDR SMT RA SGL 4CKT 30A
