850-80-020-20-001101

Preci-Dip
In Stock: 121

Can ship immediately

Pricing:
  • 1$1.69435
  • 224$1.69435

Quote It

Technical Details

  • Series:850
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:20
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.118" (3.00mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:-
  • Insulation Height:0.087" (2.20mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A
  • Voltage Rating:150VDC

Related Products


892-18-018-20-001101

CONN HEADER R/A 18POS 2.54MM

892-18-018-20-001101 Datasheet
  • 1: $1.69436
  • 500: $1.52022

882-70-046-10-001101

CONN HEADER VERT 46POS 2MM

882-70-046-10-001101 Datasheet
  • 1: $1.69441
  • 320: $1.53597

0428920086

CONN HEADER R/A 8POS 3.96MM

0428920086 Datasheet
  • 1: $1.69442
  • 1600: $1.69442

830-80-011-30-001191

CONN HEADER SMD 11POS 2MM

  • 1: $1.69470
  • 500: $1.56070

830-80-025-10-001101

CONN HEADER VERT 25POS 2MM

830-80-025-10-001101 Datasheet
  • 1: $1.69470
  • 500: $1.56070

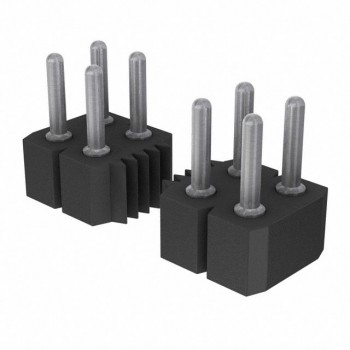

802-80-020-30-480191

CONN HEADER SMD 20POS 2.54MM

  • 1: $1.69471
  • 650: $1.56071

0026613060

CONN HEADER R/A 6POS 3.96MM

0026613060 Datasheet
  • 1: $1.69493
  • 2800: $1.69493

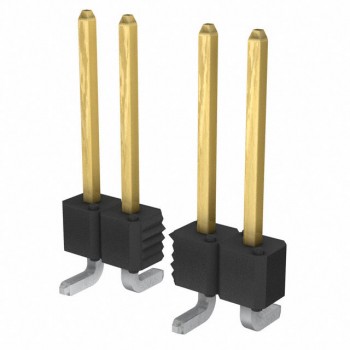

95293-105-17LF
