In Stock: 111

Can ship immediately

Pricing:
  • 1$1.85203
  • 300$1.85203

Quote It

Technical Details

  • Series:BERGSTIK®
  • Package:Bag
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:70
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.305" (7.75mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.526" (13.35mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold, GXT™
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


350-80-137-01-714101

CONN HEADER VERT 19POS 5.08MM

350-80-137-01-714101 Datasheet
  • 1: $1.85210
  • 290: $1.70562

65820-026LF

CONN HEADER R/A 16POS 2.54MM

65820-026LF Datasheet
  • 1: $1.85210
  • 800: $1.85210

1-640452-8

CONN HEADER VERT 18POS 2.54MM

1-640452-8 Datasheet
  • 1: $1.85212
  • 500: $1.65072

0436501226

CONN HEADER SMD 12POS 3MM

0436501226 Datasheet
  • 1: $1.85223
  • 1000: $1.85223

0713083214

CONN HEADER SMD 14POS 2.54MM

0713083214 Datasheet
  • 1: $1.85287
  • 3024: $1.85287

800-10-017-20-001101

CONN HEADER R/A 17POS 2.54MM

800-10-017-20-001101 Datasheet
  • 1: $1.85307
  • 300: $1.75723

800-80-016-66-001101

CONN HEADER VERT 16POS 2.54MM

800-80-016-66-001101 Datasheet
  • 1: $1.85308
  • 400: $1.85300

450-80-218-00-106191

CONN HEADER SMD 18POS 2.54MM

  • 1: $1.85317
  • 600: $1.70670

57102-F06-12ULF

CONN HEADER VERT 24POS 2MM

57102-F06-12ULF Datasheet
  • 1: $1.85325
  • 480: $1.71360

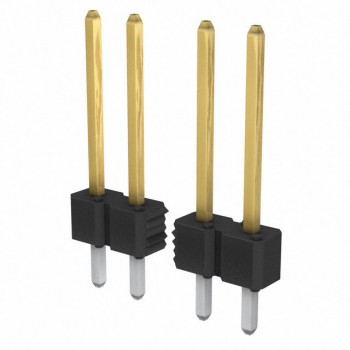

77311-132-36LF
