In Stock: 109

Can ship immediately

Pricing:
  • 1$1.88401
  • 1,000$1.71274

Quote It

Technical Details

  • Series:MTA-100
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:14
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:-
  • Contact Length - Mating:0.295" (7.49mm)



  • Contact Length - Post:0.140" (3.56mm)
  • Overall Contact Length:0.535" (13.59mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:250VAC

Related Products


800-V3-016-40-001101

CONN HEADER SMD R/A 16POS 2.54MM

800-V3-016-40-001101 Datasheet
  • 1: $1.88422
  • 230: $1.88422

95278-801A32LF

CONN HEADER SMD 32POS 2.54MM

95278-801A32LF Datasheet
  • 1: $1.88423
  • 400: $1.74193

77773-312LF

CONN HEADER VERT 21POS 2.54MM

  • 1: $1.88424
  • 396: $1.74192

77313-118-64LF

CONN HEADER VERT 64POS 2.54MM

77313-118-64LF Datasheet
  • 1: $1.88440
  • 350: $1.88440

95278-402-40LF

CONN HEADER SMD 40POS 2.54MM

95278-402-40LF Datasheet
  • 1: $1.88440
  • 300: $1.88440

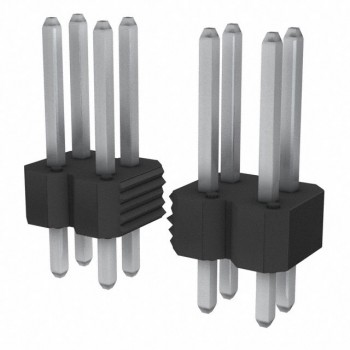

77313-424-58LF

CONN HEADER VERT 58POS 2.54MM

77313-424-58LF Datasheet
  • 1: $1.88440
  • 300: $1.88440

95278-401A30LF

CONN HEADER SMD 30POS 2.54MM

95278-401A30LF Datasheet
  • 1: $1.88441
  • 370: $1.88441

64991-S15-4RLF

CONN HEADER VERT 30POS 2.54MM

64991-S15-4RLF Datasheet
  • 1: $1.88442
  • 1140: $1.88442

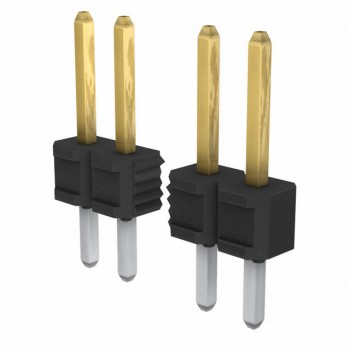

75160-196-36LF
