SMH100-LPPE-S30-SD-BK

Sullins Connector Solutions
In Stock: 118

Can ship immediately

Pricing:
  • 1$2.00057
  • 1,000$2.00057

Quote It

Technical Details

  • Series:SMH
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.039" (1.00mm)
  • Number of Positions:30
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.065" (1.65mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.039" (1.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Gold
  • Contact Material:Phosphor Bronze
  • Insulation Material:Liquid Crystal Polymer (LCP)
  • Features:-
  • Operating Temperature:-40°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A
  • Voltage Rating:-

Related Products


1-825437-6

CONN HEADER R/A 16POS 2.54MM

1-825437-6 Datasheet
  • 1: $2.00127
  • 300: $1.94300

10112684-T03-24ULF

CONN HEADER SMD R/A 24POS 2MM

10112684-T03-24ULF Datasheet
  • 1: $2.00182
  • 384: $1.85098

0010977266

CONN HEADER VERT 26POS 2.54MM

0010977266 Datasheet
  • 1: $2.00192
  • 3000: $2.00192

0022282222

CONN HEADER R/A 22POS 2.54MM

0022282222 Datasheet
  • 1: $2.00200
  • 2000: $2.00200

0022282228

CONN HEADER R/A 22POS 2.54MM

0022282228 Datasheet
  • 1: $2.00200
  • 2000: $2.00200

0015477518

CONN HEADER VERT 18POS 2.54MM

0015477518 Datasheet
  • 1: $2.00245
  • 1224: $2.00245

802-80-028-30-001101

CONN HEADER SMD 28POS 2.54MM

802-80-028-30-001101 Datasheet
  • 1: $2.00253
  • 300: $1.84403

4-2842269-2

42P,2MM,SHRD HDR,DRRT,SN,TR

  • 1: $2.00265

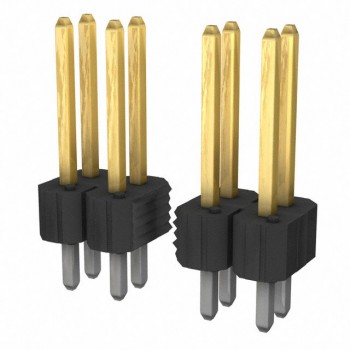

68690-172
