In Stock: 197

Can ship immediately

Pricing:
  • 1$2.02215
  • 600$1.86967

Quote It

Technical Details

  • Series:BERGSTIK®
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:22
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.095" (2.41mm)
  • Overall Contact Length:-
  • Insulation Height:0.200" (5.08mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:78.7µin (2.00µm)
  • Contact Finish - Post:-
  • Contact Material:Phosphor Bronze
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


77319-803R16LF

CONN HEADER R/A 16POS 2.54MM

77319-803R16LF Datasheet
  • 1: $2.02216
  • 500: $1.86966

0741621016

CONN HEADER R/A 16POS 2.54MM

0741621016 Datasheet
  • 1: $2.02217
  • 1026: $2.02217

450-80-226-00-106101

CONN HEADER SMD 26POS 2.54MM

450-80-226-00-106101 Datasheet
  • 1: $2.02230
  • 400: $1.86243

0741640118

CONN HEADER R/A 18POS 2.54MM

0741640118 Datasheet
  • 1: $2.02246
  • 1377: $2.02246

0879209115

CONN HEADER SMD 14POS 2.54MM

0879209115 Datasheet
  • 1: $2.02258
  • 2200: $2.02258

0878337000

CONN HEADER R/A 34POS 2MM

0878337000 Datasheet
  • 1: $2.02289
  • 1400: $1.98636

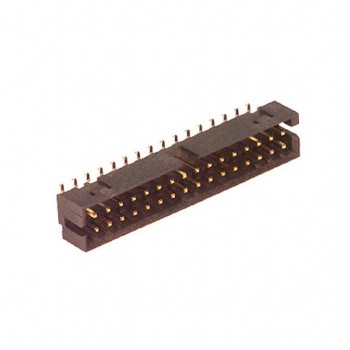

0878326522

CONN HEADER SMD 32POS 2MM

0878326522 Datasheet
  • 1: $2.02290
  • 1000: $2.02290

95278-802T40LF

CONN HEADER SMD 40POS 2.54MM

95278-802T40LF Datasheet
  • 1: $2.02291
  • 165: $1.87006

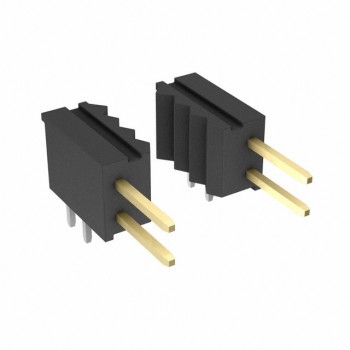

A1A-36PA-2.54DS(71)
